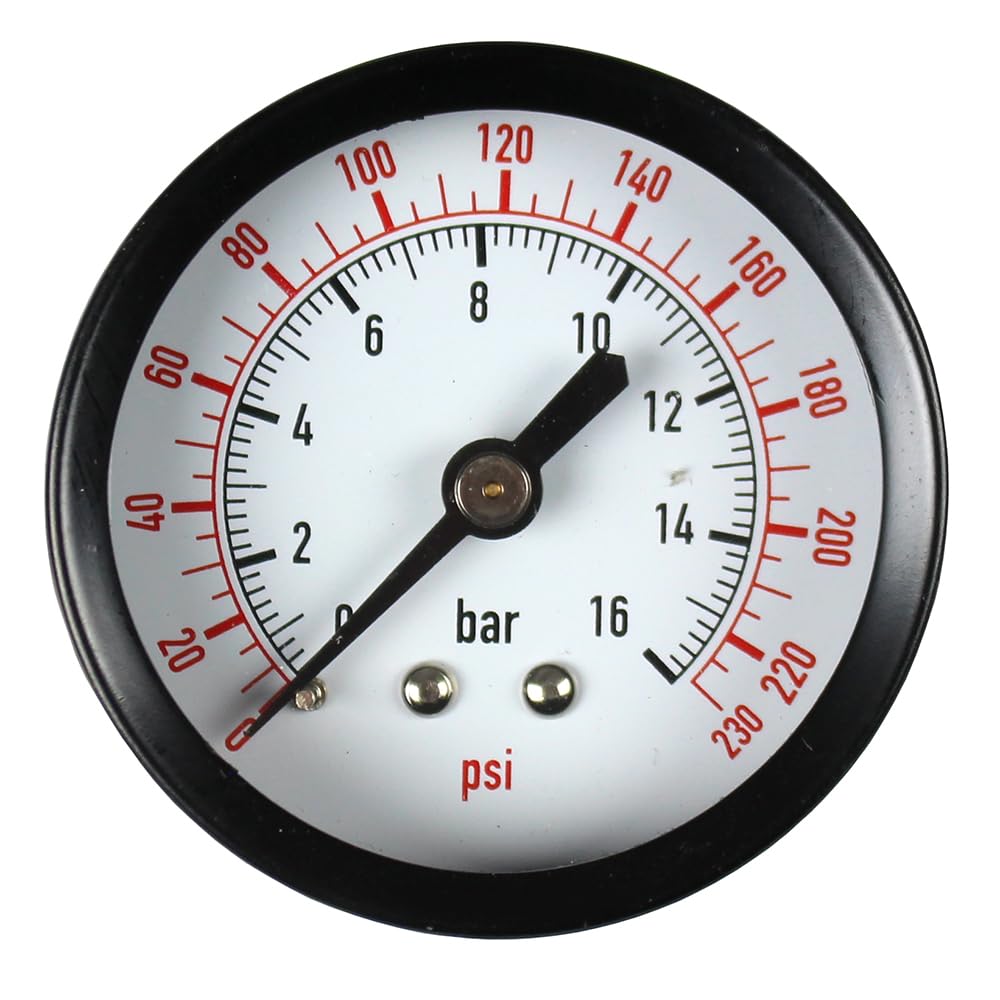

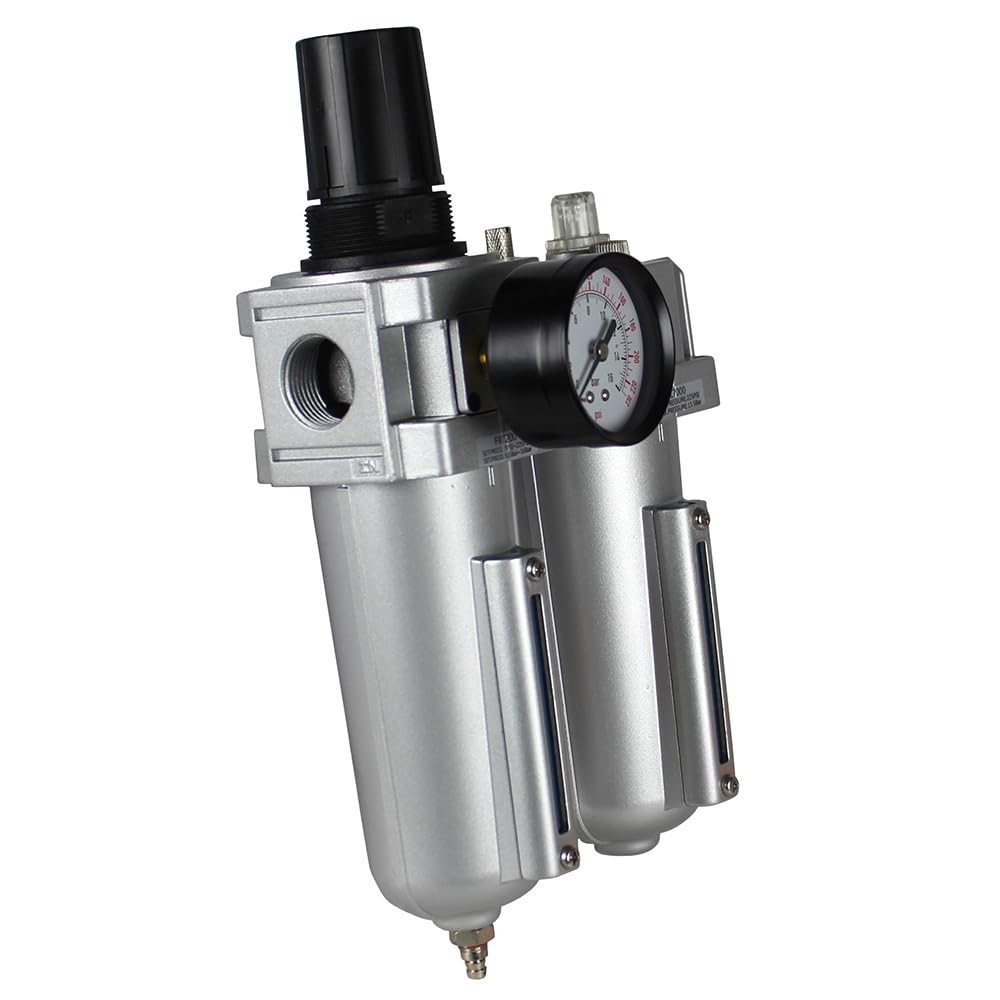

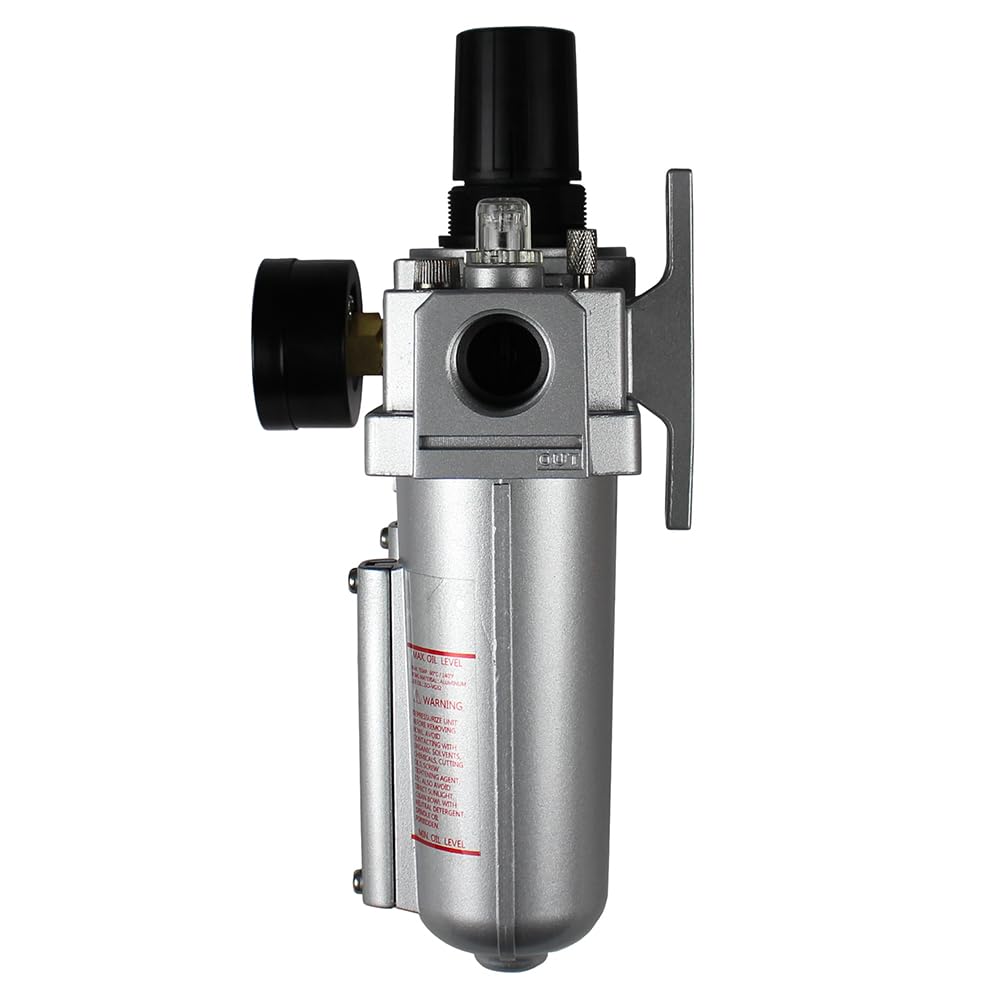

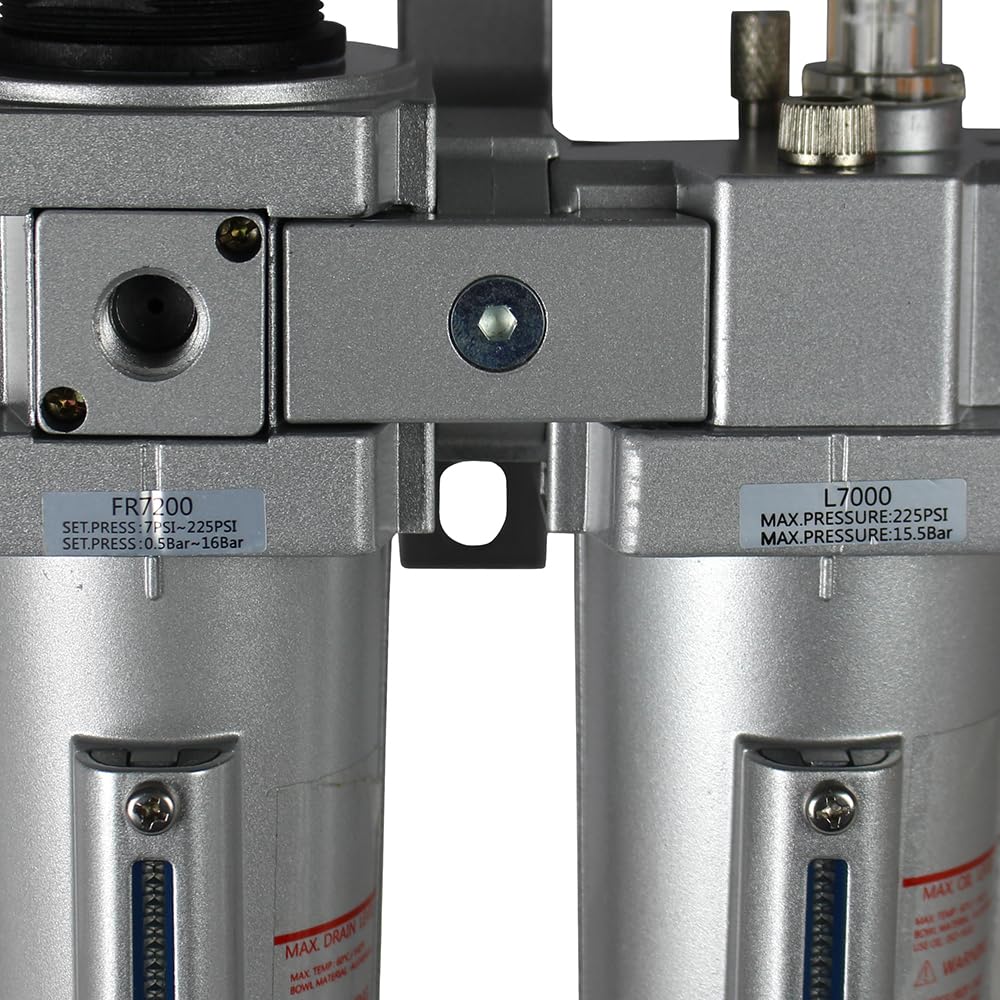

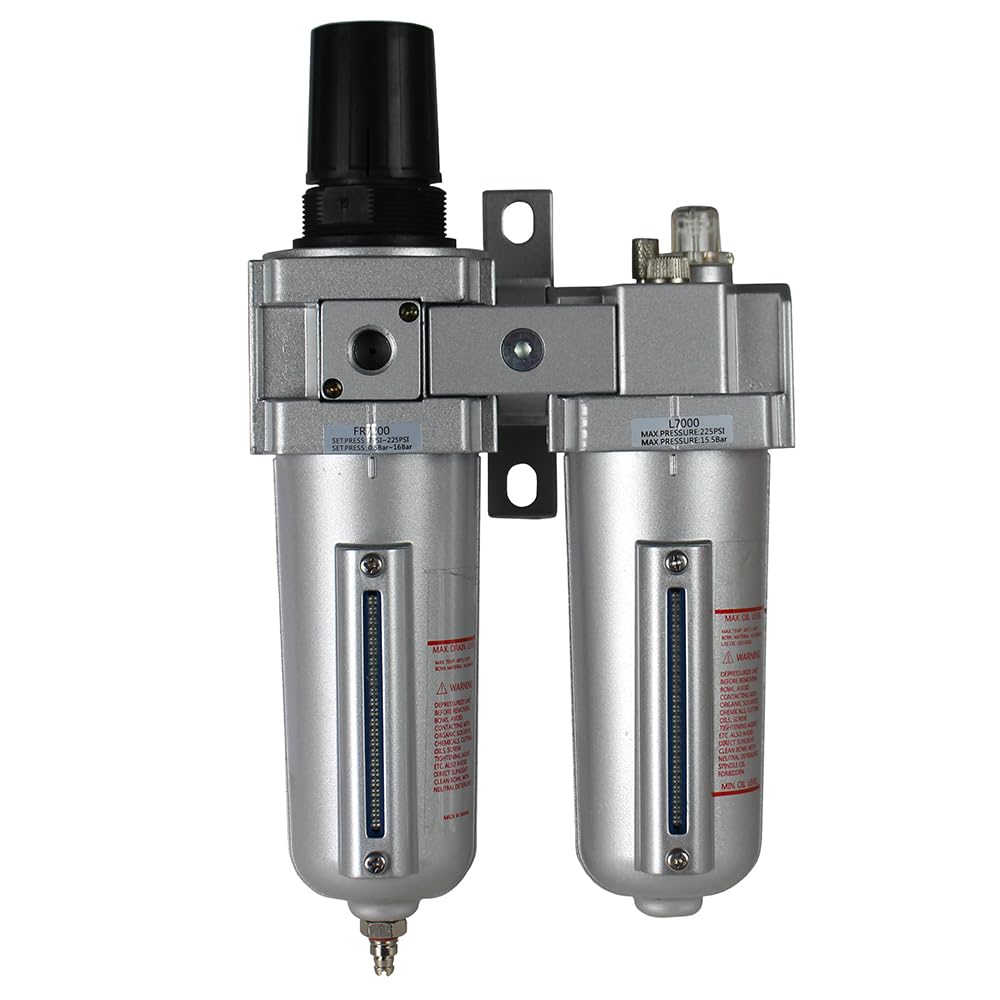

This 3-stage compressed (FRL) filter, regulator, and lubricator combo is built to simplify air management in demanding shop and industrial environments. Designed with 3/4″ female NPT inlet and outlet ports, it allows you to regulate pressure, remove moisture, and lubricate tools–all in one compact, space-saving unit. Built-in sight glasses on the moisture and oil bowls let you monitor fluid levels at a glance. The regulator allows adjustment between 7 and 160 PSI, while the 5-micron filter captures debris and water vapor before it can reach your tools. With a max pressure of 225 PSI and a flow rate up to 140 CFM, it’s ready for high-output performance, whether you’re in the garage, field, or factory. Specifications: Max Pressure: 225 PSI Max Flow Rate: 140 CFM Regulator Adjustment Range: 7-160 PSI Filter Rating: 5 Micron (2.7 oz bowl capacity) Lubricator Capacity: 5.1 oz Port Size: 3/4″ Female NPT (Approx. 1″ thread diameter) Included Pressure Gauge Compact, Wall-Mountable Design Dimensions: 6″ L x 3.5″ W x 10.75″ H Featured Highlights: All-in-one filter, regulator, and lubricator saves space and simplifies your compressed air setup. Clear sight glasses on both bowls make maintenance fast and easy. Rated for 225 PSI and 140 CFM, ideal for high-demand pneumatic applications. 5-micron filtration captures fine particles and moisture, protecting downstream tools. Universal 3/4″ NPT ports make installation easy in most shop and commercial systems.
Features
- All-in-one filter, regulator, and lubricator saves space and simplifies your compressed air setup.
- This is a high-quality unit that gives you the power to keep moisture out of your airlines, regulate air pressure, and lubricate your airlines all at once!
- This has 3/4″ female NPT input as well as a 3/4″ female NPT output port.
- This assembly has a 140 CFM max flow rate and comes equipped with a pressure gauge.
- You can adjust the regulated pressure between 7 – 160 PSI with a 225PSI max PSI.
