Accu-Scope Compound Microscope EXC-120 – Binocular Head, 40-1000X Magnification, Achromat Objectives, Mechanical Stage

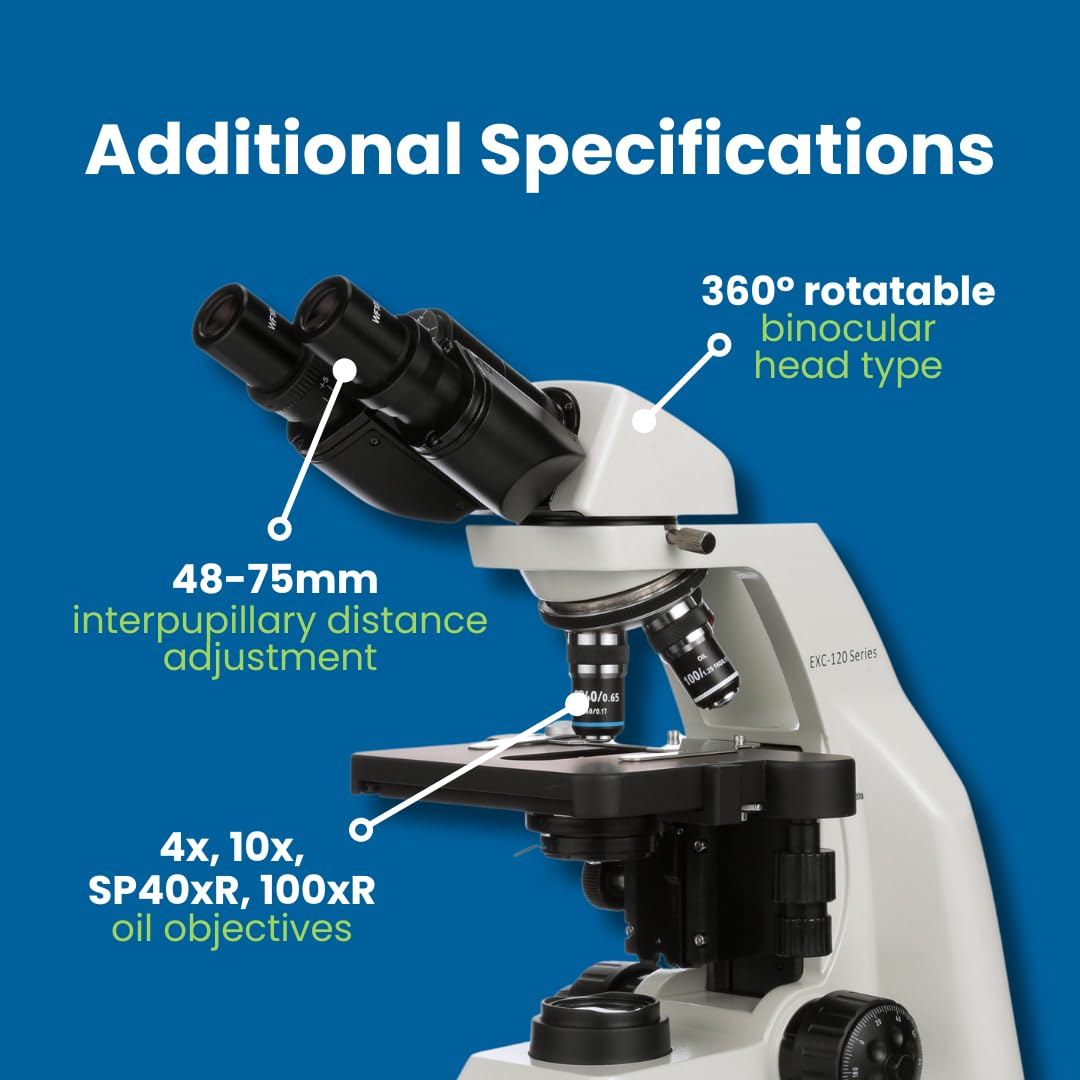

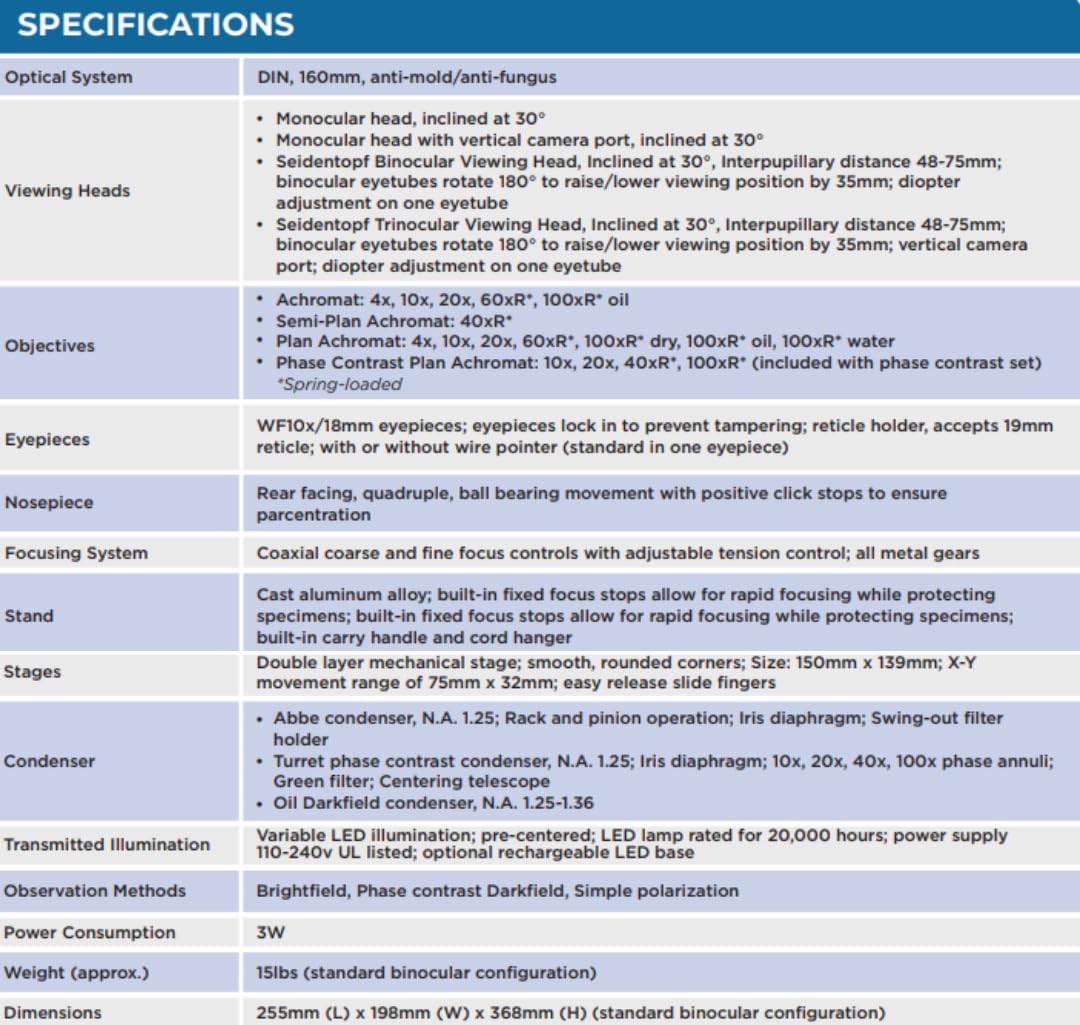

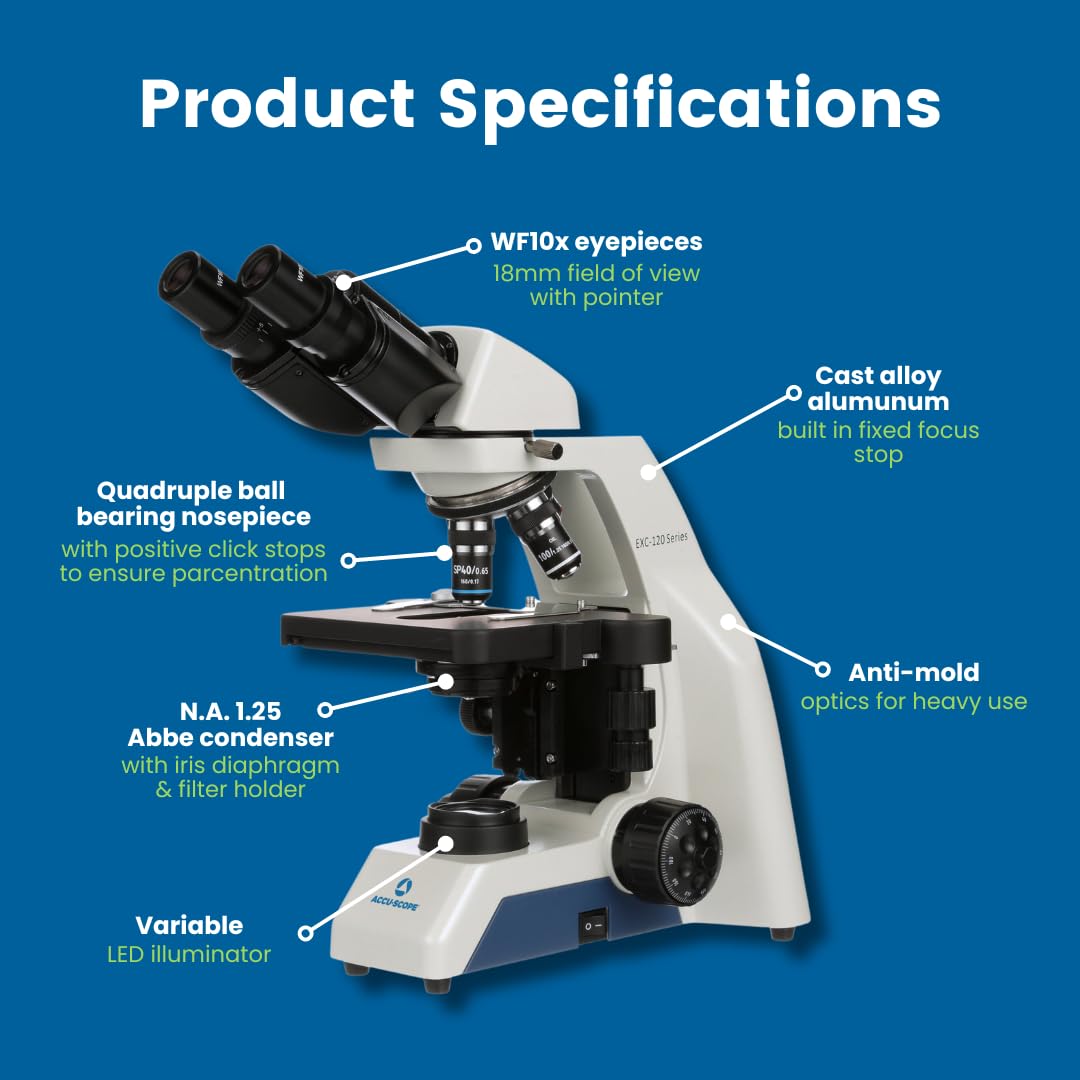

The EXC-120 features a 360deg rotatable binocular viewing head; 30deg inclined paired WF10x/18.5mm eyepieces; diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, SP40xR and 100xR oil objectives; rackless mechanical stage with low position coaxial coarse and fine focusing controls; and Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder. Variable LED illuminator is UL Listed. Specifications – Optical System: DIN Optical System, f=160mm – Viewing Head: Binocular; Interpupillary distance adjustment 48-75mm – Eyepieces: WF10x/18.5mm field of view; pointer in one eyepiece; eyepieces are locked-in to prevent classroom tampering & accept 19mm reticles – Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration. – Objectives: Achromat objectives; 4x, 10x, Semi-Plan 40xR* & 100xR oil* (*spring-loaded). – Stage: Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm – Condenser: N.A. 1.25 Abbe condenser on rack & pinion with iris diaphragm & swing-out filter holder. – Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle & cord hanger. – Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved. – Focusing System: Coaxial coarse & fine focus controls with an adjustable tension control; all metal gears. – Accessories: Dust cover, immersion oil & instruction manual included. – Certification: ISO 9001: 2018 & ISO 14001: 2018; UL approved; CE – Warranty: 5-year limited warranty for parts, labor & electronic components; 1-year warranty on LED bulb – Microscope Dimensions (LWH): 255mm x 198mm x 368mm

Features

• ERGONOMIC || Features a binocular head with interpupillary adjustment and low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• OPTICAL EXCELLENCE || High-quality DIN achromat optics in 4x, 10x, semi-plan 40xR*, and 100xR* (*spring-loaded) oil objectives provide superior, 40X-1000X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast
• ADVANCED MICROSCOPY || ACCU-SCOPE EXC-120 microscope is ideal for brightfield observation, phase contrast, and simple polarization microscopy
• DURABLE CONSTRUCTION || The rugged, die-cast aluminum frame with all brass gears is designed for years of heavy use. Delivers exceptional value and performance for advanced applications
• PORTABLE || With two built-in carry handles and cord wrap, this microscope is highly portable, allowing you to take it wherever you need
