AmScope 40-400X Inverted Infinity-Corrected Phase-Contrast Biological Microscope with 30W Illumination

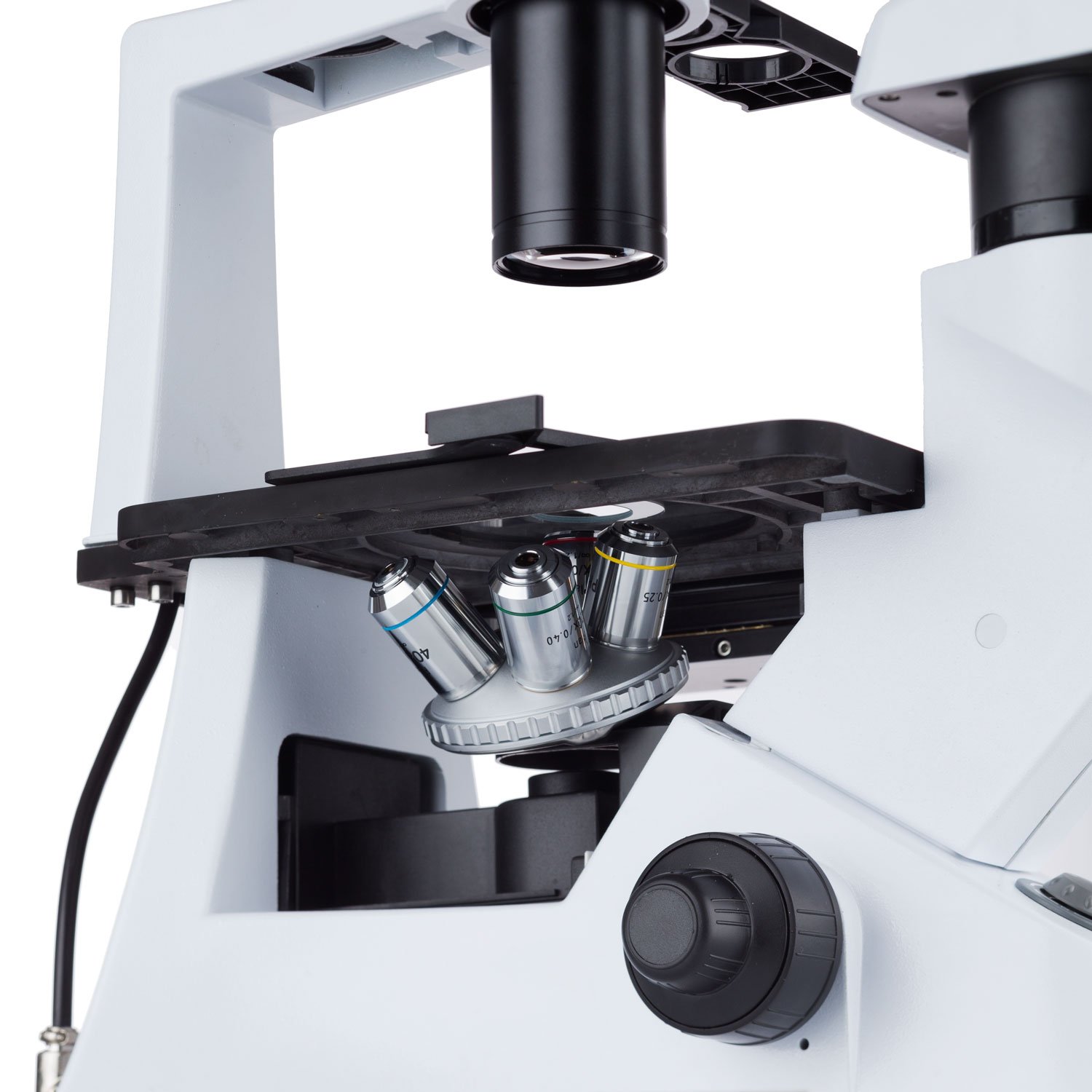

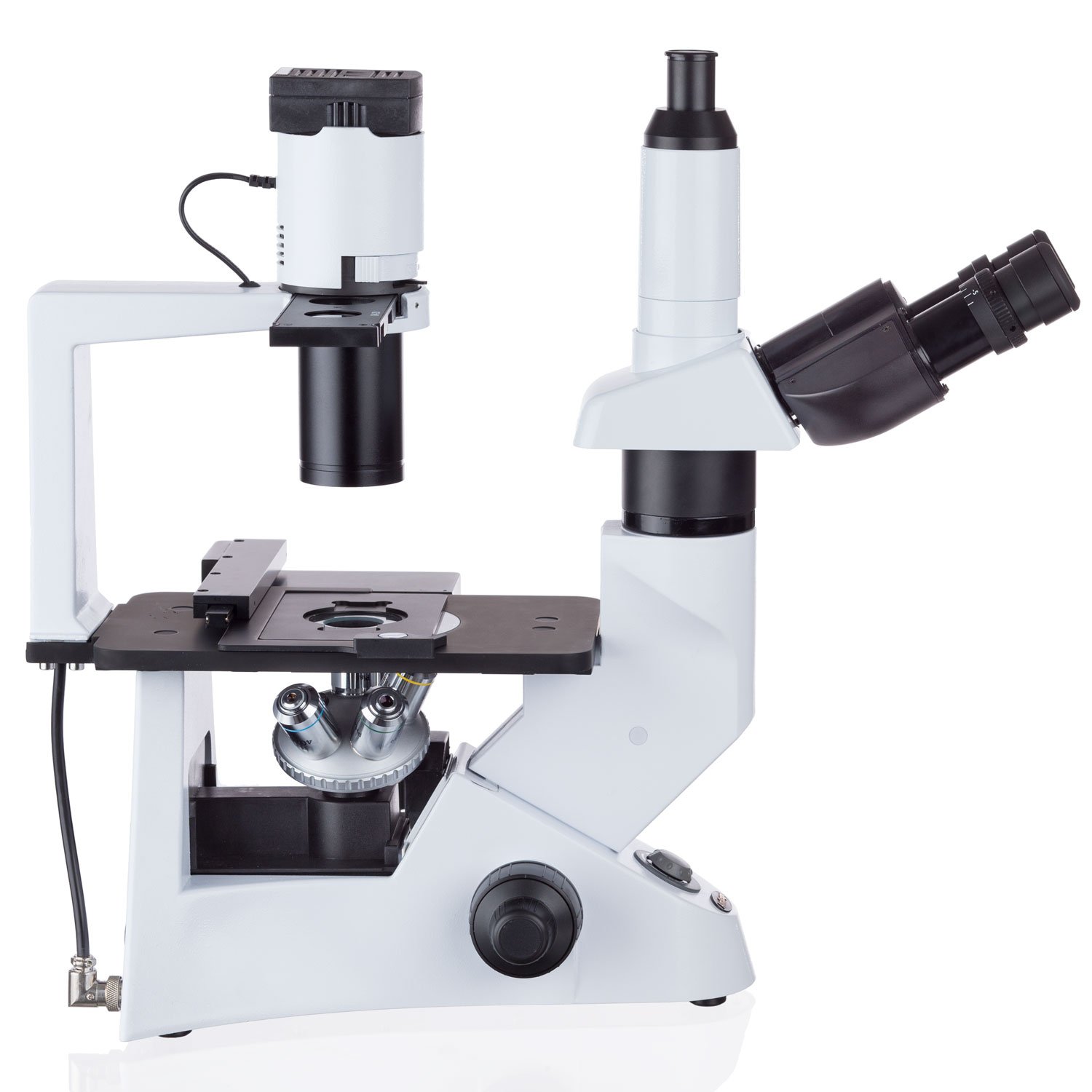

The IN330T is an inverted, infinity-corrected compound microscope designed for biological applications. With 10X high-eyepoint, extreme-wide-field eyepieces, and four objective lenses (4X, 10X, 20X, 40X), the microscope offers four magnifications from 40X to 400X. The inverted format, large stage, and assortment of specimen-holders make this an ideal microscope for cell-cultures and multiple samples. The mechanical stage controls allow for easy observation of large samples, or multiwell plates. The 30-degree inclided head with Siedentopf adjusters provides a comfortable viewing platform. The overhead illuminator can utilize color filters (3 included), and a phase-contrast annulus board for use with the 10X and 20X phase-contrast objective lenses. Intensity is controlled by an easy-to-reach, front-mounted dial. The addition of a trinocular photo-port adds extra convenience, allowing for permanent mounting of an imaging system with vertical stability. Specifications: – Optical System: infinity-corrected – Head Viewing Angle: 30 degrees inclined – Interpupillary Distance: 48-75mm – Eyepieces: high-eyepoint, extreme wide-field 10X, FN22 – Nosepiece: quintuple sub-stage – Objective Lenses: Plan 1.2mm glass-thickness (4X, 10XPh, 20XPh, 40X) – Condenser: NA 0.3 LWD – Stage Dimensions: 160mm x 250mm – Mechanical Stage Control: X-Y coaxial – Mechanical Stage Range: 120mm x 78mm – Focusing Control: coaxial coarse/fine objective-movement – Illumination: 30W halogen – Filters: 45mm blue, green, frosted – Photo Tube: 23mm adjustable-height

Features

• 40-400X inverted biological microscope
• 40-400X inverted biological microscope
• 40-400X inverted biological microscope
• Infinity-corrected optical system with Plan achromatic objectives
• 10X and 20X Phase-contrast objectives included
• Ideal for cell-cultures and multiwell samples
• Stable photo-port for optional imaging system
