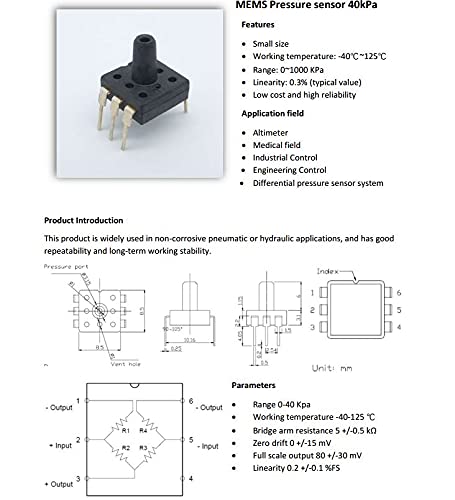

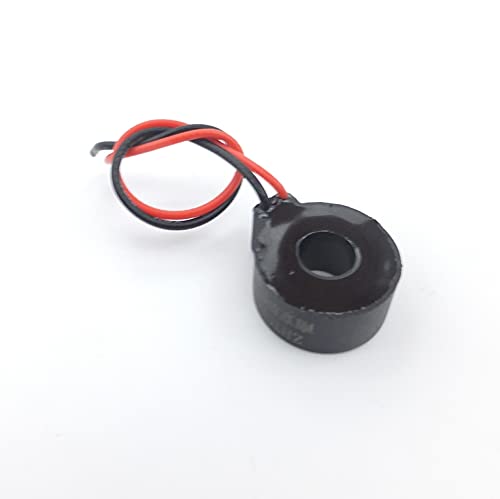

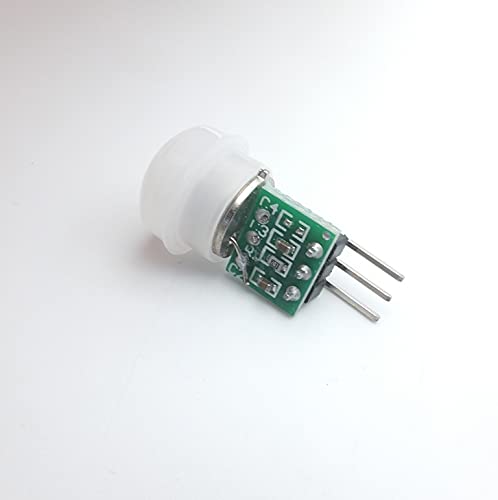

Analog sensors & transducers KIT for multisensorial electronics and physics lab projects. Kit for research of transducers for measuring or detecting physical phenomena. Unexpensive kit full of sensors, ideal for the basic electronics engineers and physics scientists, for laboratory practices or as a quick resource for the hardware engineering developer. – KIT with sensors to measure or detect: Alcohol, Electric Current, LPG/CNG, Presence, Light, Relative Humidity, Pressure, Temperature, Crash, Motor speed, Magnetic field, Sound, Weight, Vibration/tilt, Touch, Obstacle detection, Fire/Flame – MQ-3 Alcohol sensor: Useful for alcoholimeter product, to determine whether a user’s breath contains a high concentration of alcohol. – MQ-5 LPG/NG sensor: Useful for LPG or CNG leak detection products – ACS7112 current sensor: Useful for measuring the current consumption of a given product. Range: +-5A – Inductive current transducer: Useful for measuring current consumption non-invasively, through magnetic induction. Range: 5A/5mA – Mini PIR module: infrared presence detection module – OPT101 Light sensor chip: Linear output sensor for accurate lightning measurement – MEMS Pressure transducer: Internal H-bridge sensor. Use a constant current supply to measure the differential voltage. – And much more!
Features

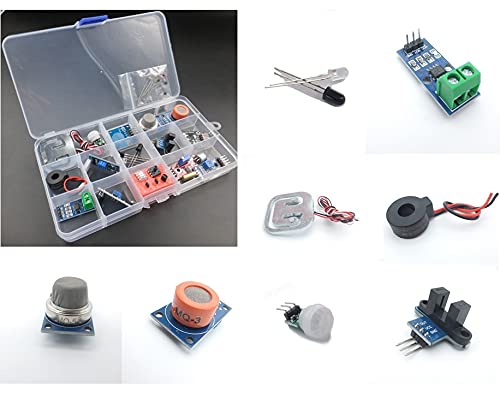

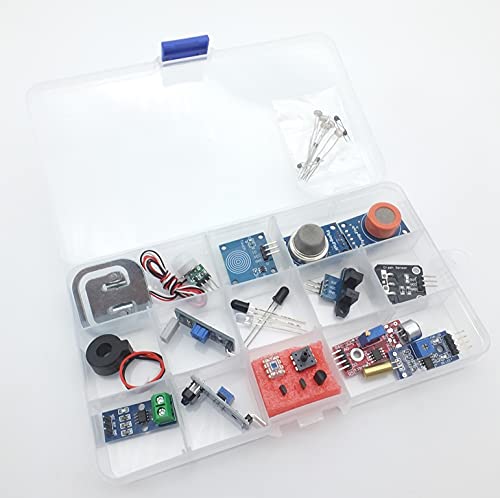

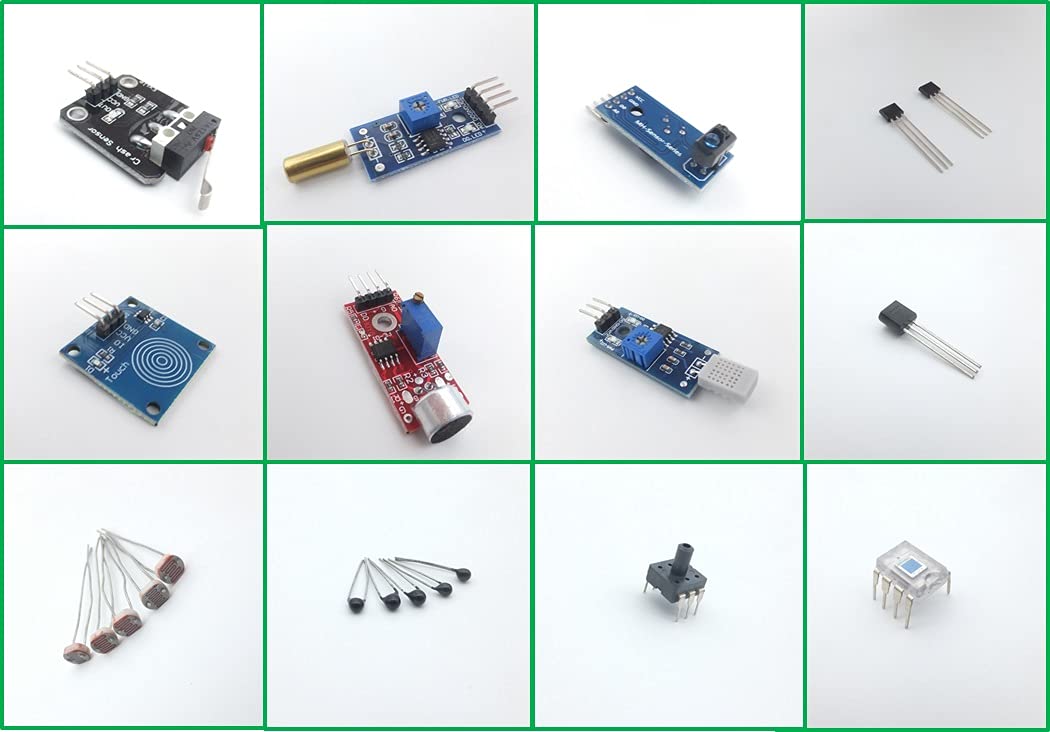

- – KIT CONTENTS: 1* MQ-3 Alcohol sensor; 1* ACS7112 current sensor +-5A; 1* MQ-5 LPG/NG sensor; 1* Mini PIR module
- – 1* OPT101 Light sensor; 1* HR-202 relative humidity sensor; 1* 40kPa MEMS Pressure transducer; 1* Inductive current sensor 5A/5mA
- – 2* LM35 Temperature sensor; 1* Switch module (crash sensor); 1* WYC-H206 Photo interrupter sensor; 2* AH49E magnetic field Hall effect sensor

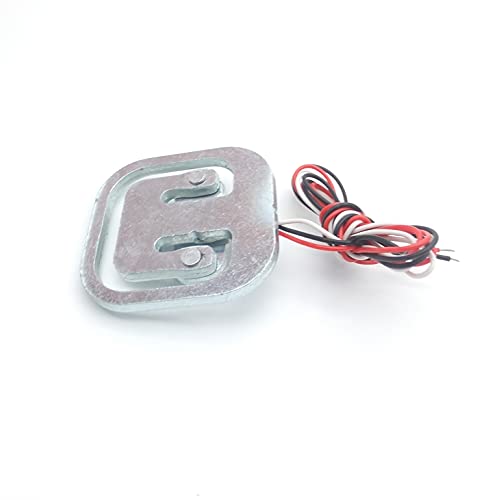

- – 1* High gain microphone sensor; 1* Load cell 50kg; 1* Vibration/tilt detector; 1* Touch sensor module; 1* Optical obstacle detection (adjustable range)
- – 5* 100KOhm NTC Thermistor; 5* 100KOhm Photoresistor; 1* IR Phototransistor + IR LED; 1* Plastic enclosure 5×3 ways
- – KIT with sensors to measure or detect: Alcohol, Electric Current, LPG/CNG, Presence, Light, Relative Humidity, Pressure, Temperature, Crash, Motor speed, Magnetic field, Sound, Weight, Vibration/tilt, Touch, Obstacle detection, Fire/Flame
