CNCTOPBAOS 3″ Cross Slide Vise for Mill and Drill Press,3 Inch Cross Sliding Flat Vise,Aluminum Alloy 2 Way Movement X-Y Compound Bench Top Woodworking Clamp for Mini Drilling Milling Machine

Features

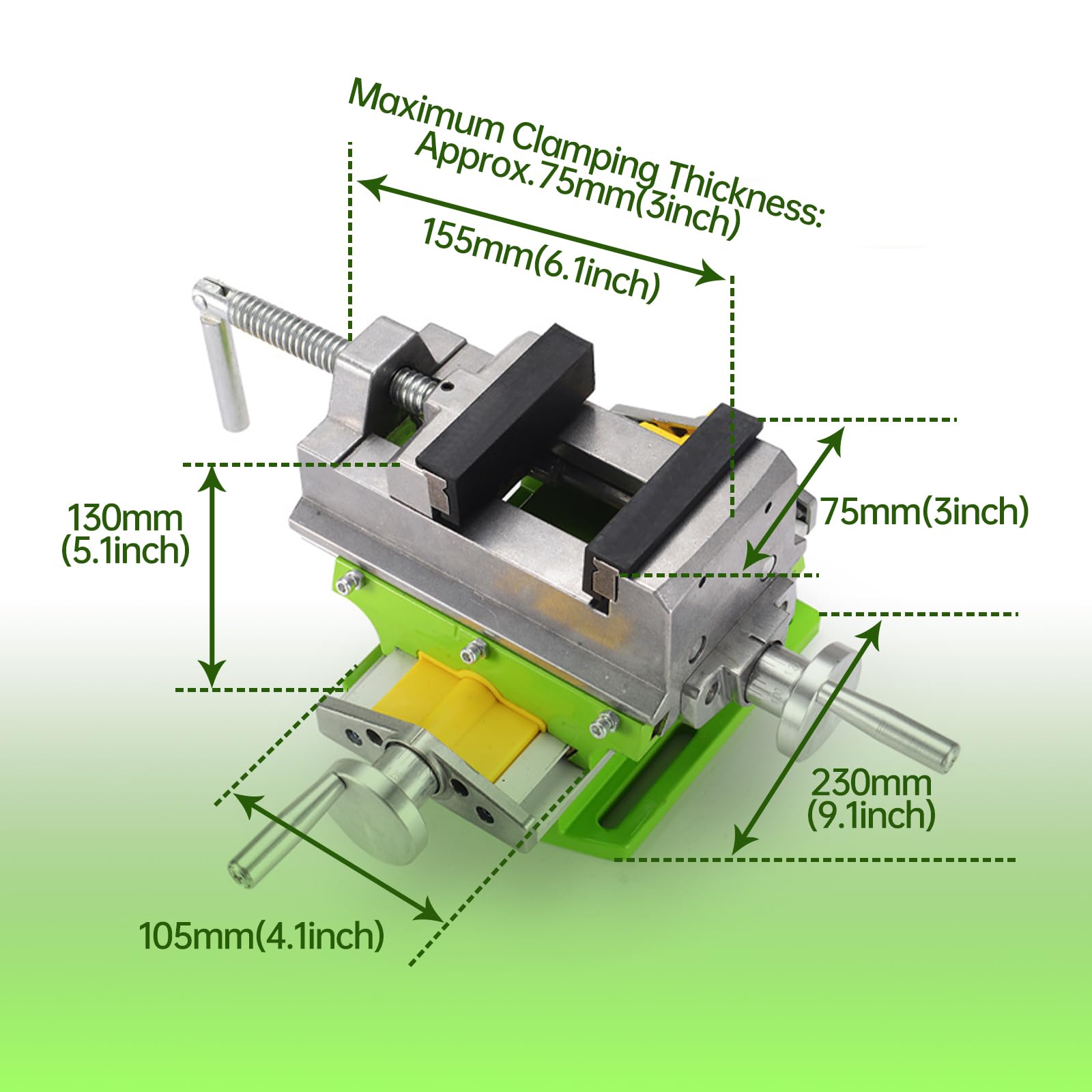

• Size:Table length,width,and height: 6.1″x9.05″x5.11″ 155x230x130 mm; Travel: X-axis: 3.14″ 80 mm; Travel: Y-axis: 2.63″ 67 mm; Base hole spacing: 4.13″ 105 mm
• Max jaw opening:Max jaw opening: 2.95″=75 mm; One Round scale:1.5 mm; Gross weight of the vise: 6.3 LBS=2.9 KG

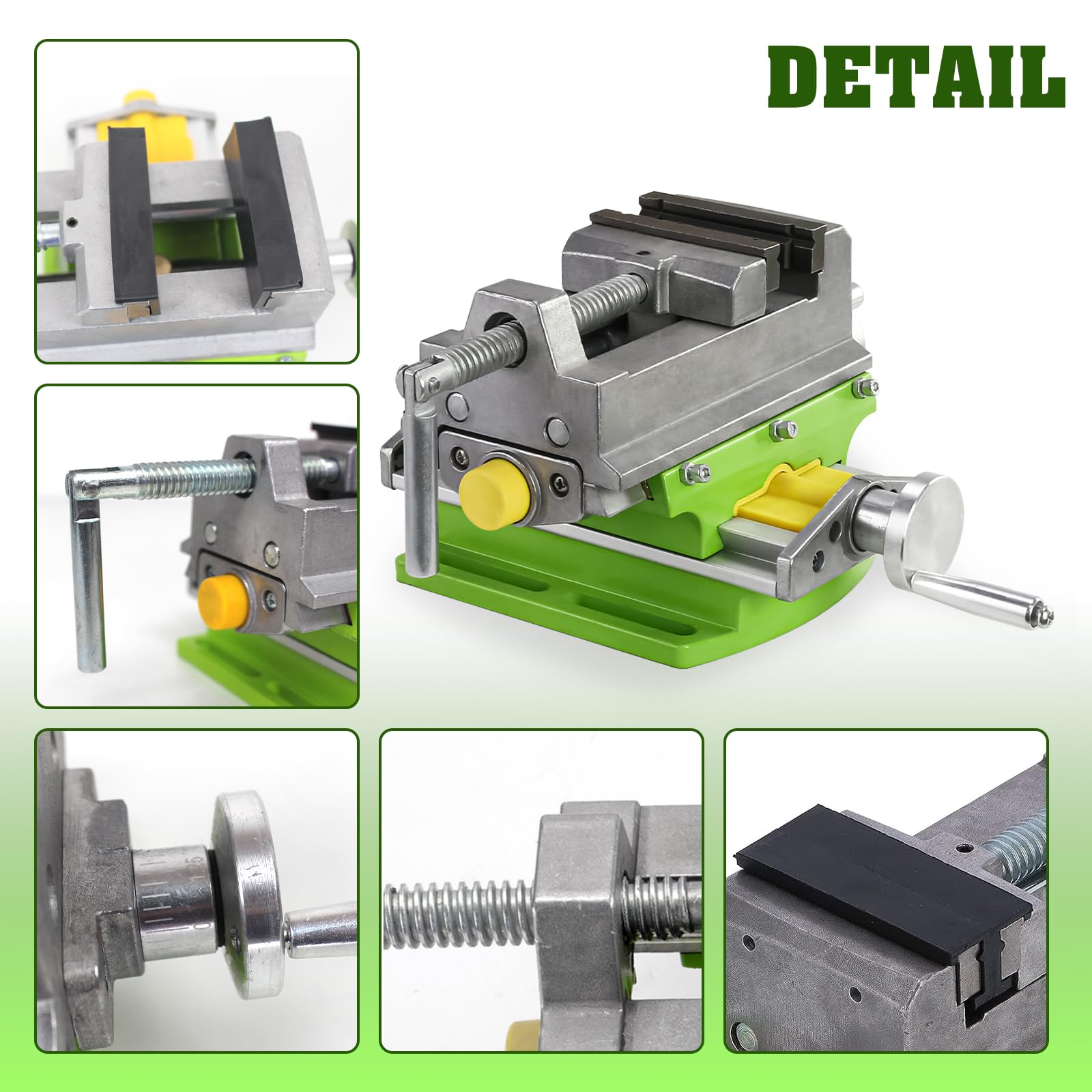

• Material:Equipped with detachable rubber jaw protective sleeve,clamping is more stable,tight,and anti-skid; Thickened aluminum alloy base,with thick and wear-resistant screw rods,ensuring high accuracy and high hardness in the smallest space
• Hand wheel:The force bar can rotate 360 degrees to adjust the width of the vise clamp,and the handwheel has a marked 0.05 mm increment to achieve maximum accuracy,the stroke for one revolution is 1.5 mm,A ring=1.5 mm; Equipped with 2 rotating crank handles for adjusting the vise from front to back and from left to right, with bolt fixing slots for fixing
• Application:This cross slide vise is mainly suitable for small mills and drilling machines, and can also be applied to other suitable machine tools, such as drilling machine brackets,desktop drilling machines,woodworking and metal processing etc
