CNCTOPBAOS HF020 Stepper Motor Motion Controller,CNC Servo Motor Preset Motion Control Module Panel System,DC12-24V 85KHz Pulse Driver Speed Limit Home Forward Reverse 2 Output 7 Input

Features

• Introduction: This is a special operation motion control module for stepper motor/servo motor.This module does not have programmable functions,but it is equipped with multiple fixed operating modes.Users can quickly choose the appropriate motion trajectory, save it when powered off, and set the distance/speed/delay/number of cycles

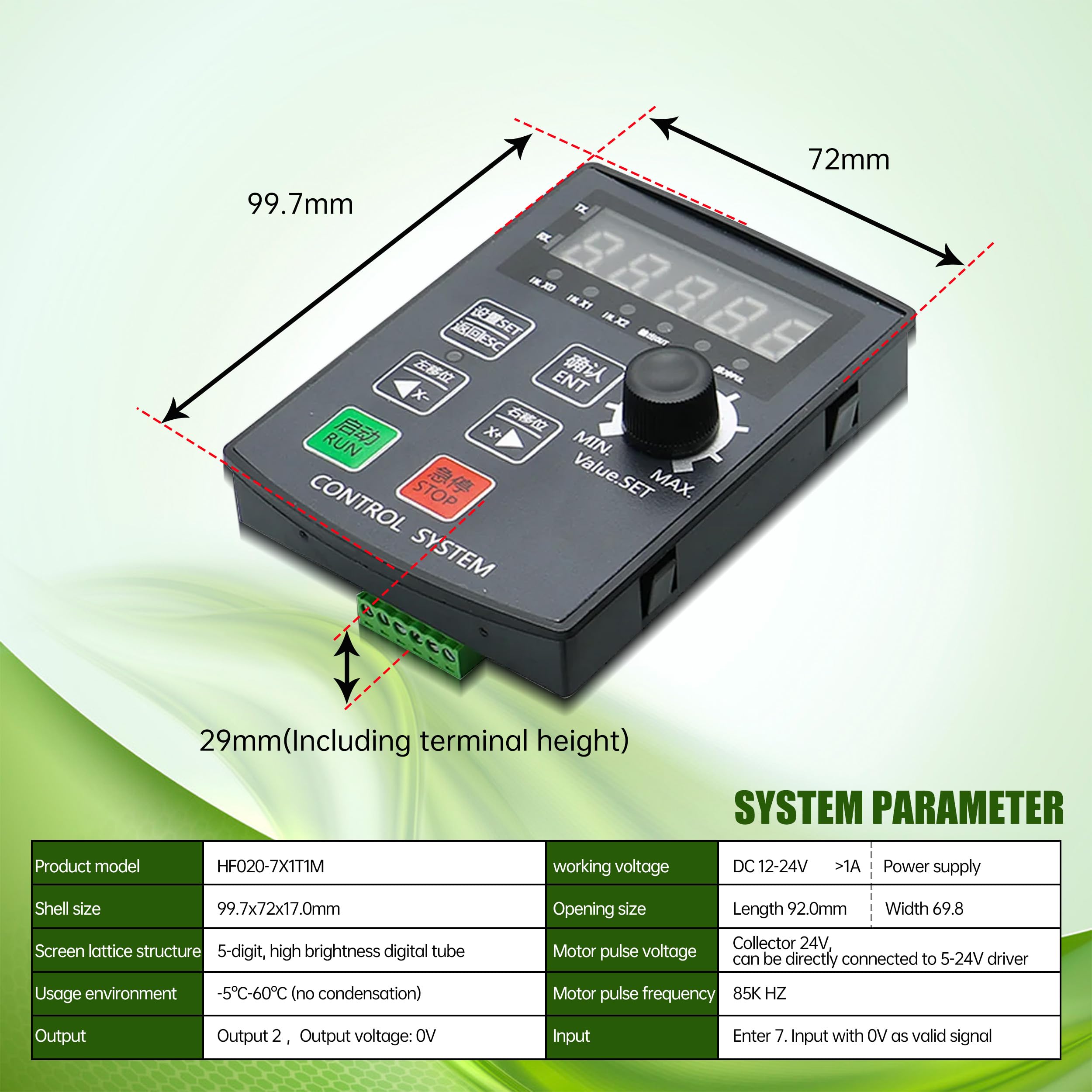

• Specifications: Model is HF020; Drive size: 99.7x72x29MM / 3.92×2.83×1.14 inch; Opening size: 92×69.8MM / 3.62×2.74 inch; Screen Structure: 5 digit,high light digital tube; Operating Voltage: DC DC12-24V, >1A power supply; Motor Pulse Voltage: Collector 24V,can be directly connected to 5-24V driver; Motor Pulse Frequency: 85K HZ; 2 Output,output Voltage:0V; Input: 7 Input.The input takes 0V as the valid signal
• Multi-Functional: Automatic and manual functions;Speed can be adjusted;Forward and reverse;There is a delay function;It can run cyclically;Acceleration and deceleration settings;Electronic gear ratio setting

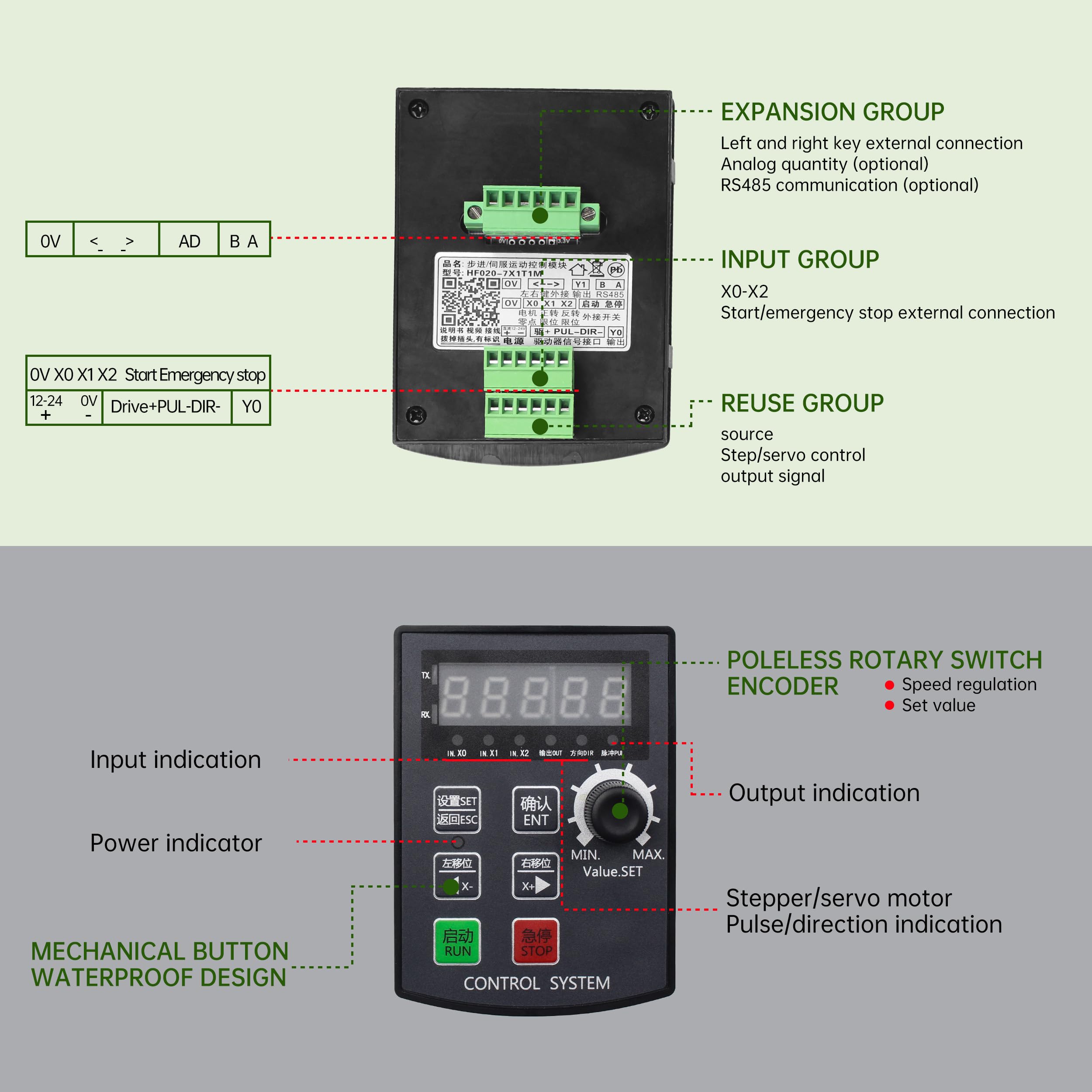

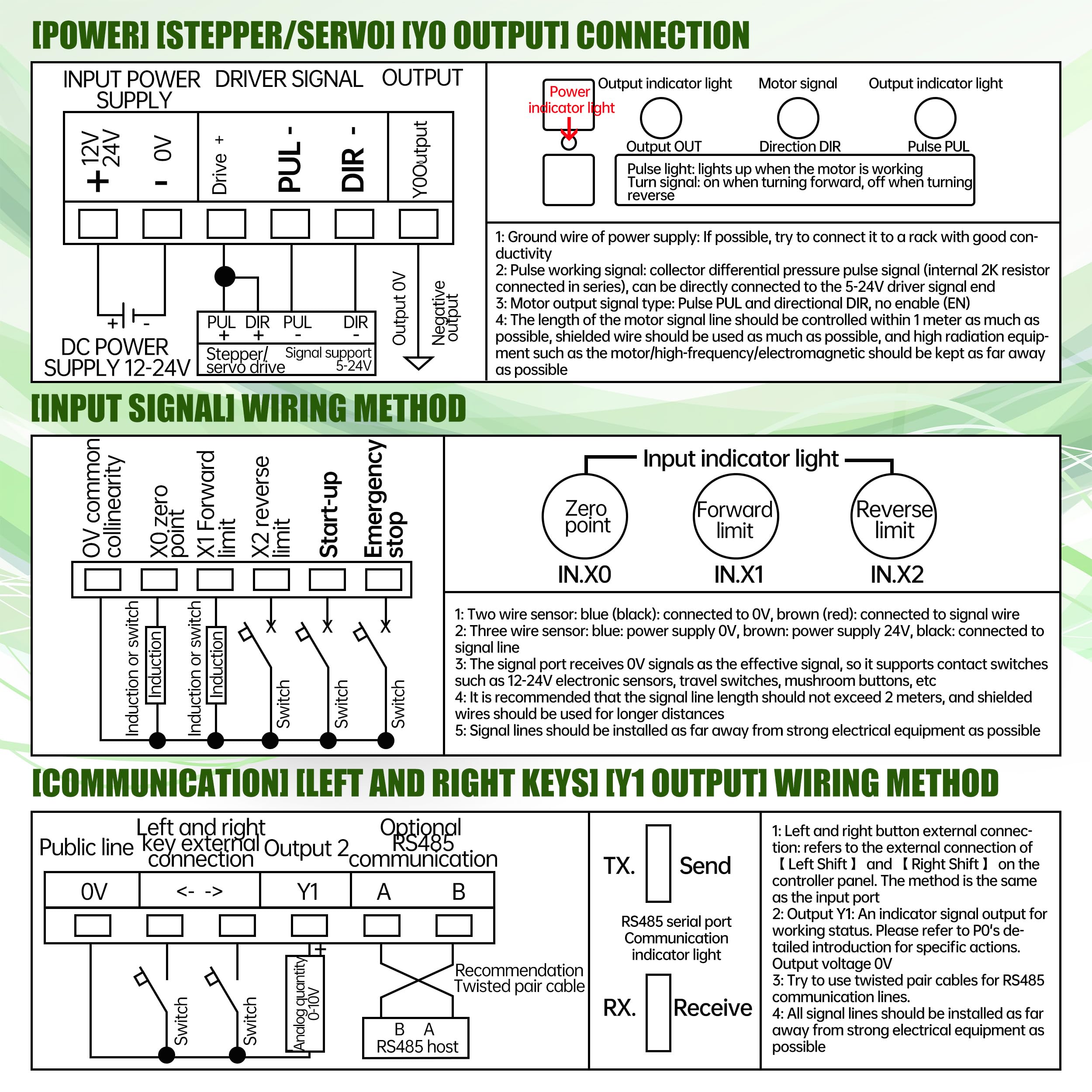

• Terminal blocks: Terminal blocks are cpmpact,durable,safe and reliable 3.5mm pitch terminals,3.81mm pitch locking terminals

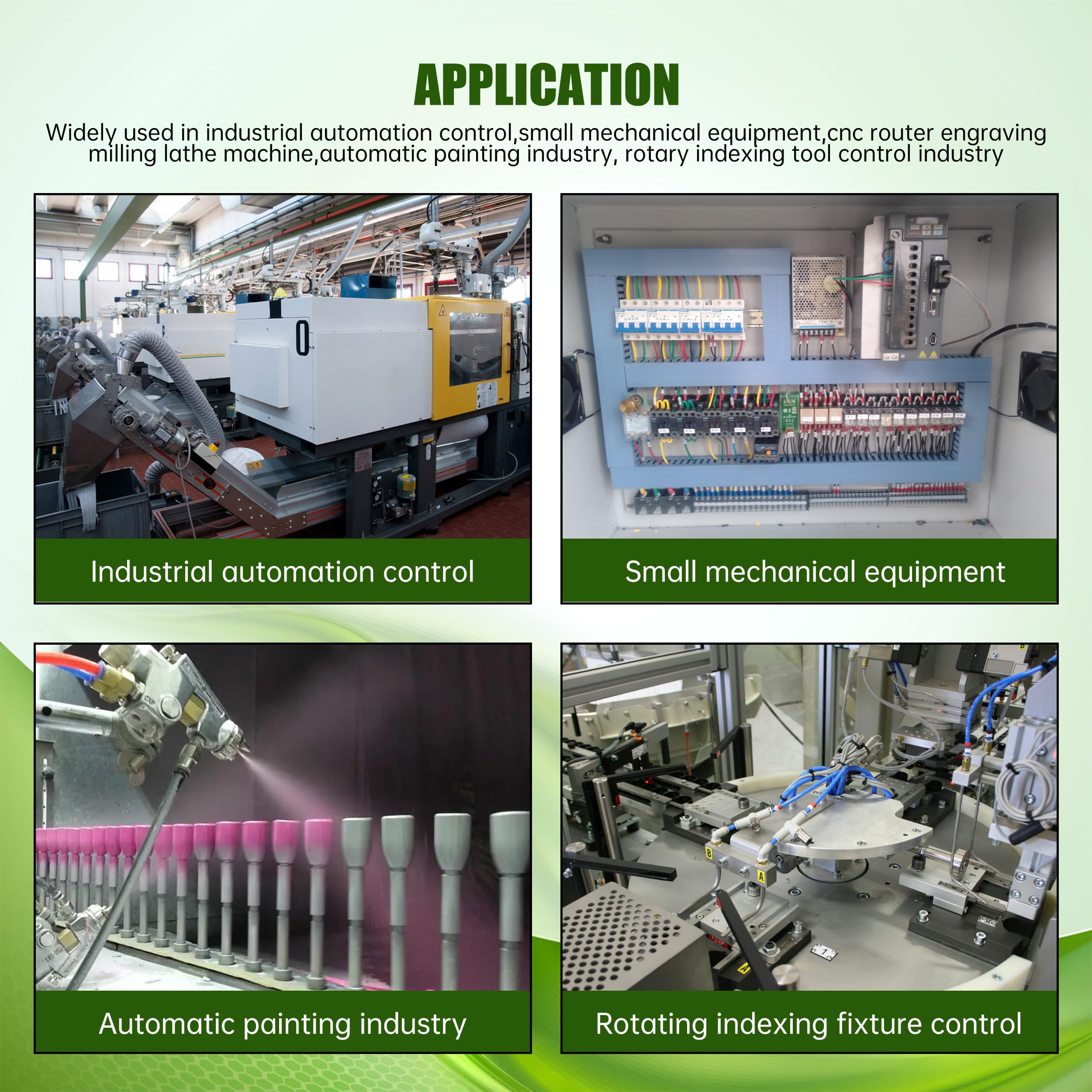

• Applications: Widely used in industrial automation control,small mechanical equipment,cnc router engraving milling lathe machine,automatic painting industry, rotary indexing tool control industry; It can be independently run as a module,can also cooperate with other systems,as a third party module to make up for the lack of motor output shaft
