DAOKAI USB Logic Analyzer Device kit USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug with 6 Colors Test Hook Clip Set Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM

$9.99

This logic analyzer provides a hands-on tool for students to learn about digital electronics, circuitry, and computer programming.

DAOKAI USB Logic Analyzer Device kit USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug with 6 Colors Test Hook Clip Set Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM
DAOKAI USB Logic Analyzer Device kit USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug with 6 Colors Test Hook Clip Set Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM
$9.99

[wpforms id=”1190″ title=”true” description=”Request a call back”]

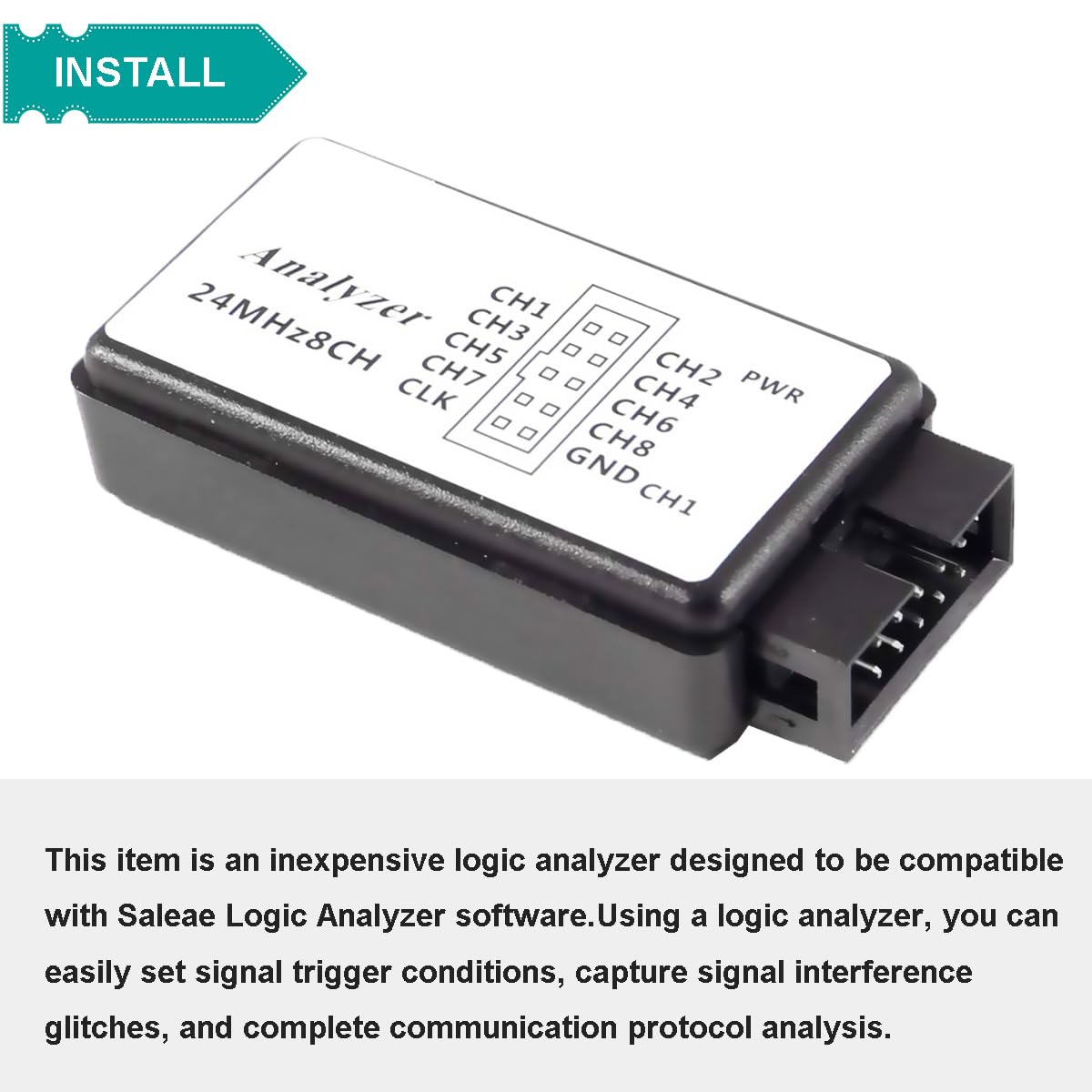

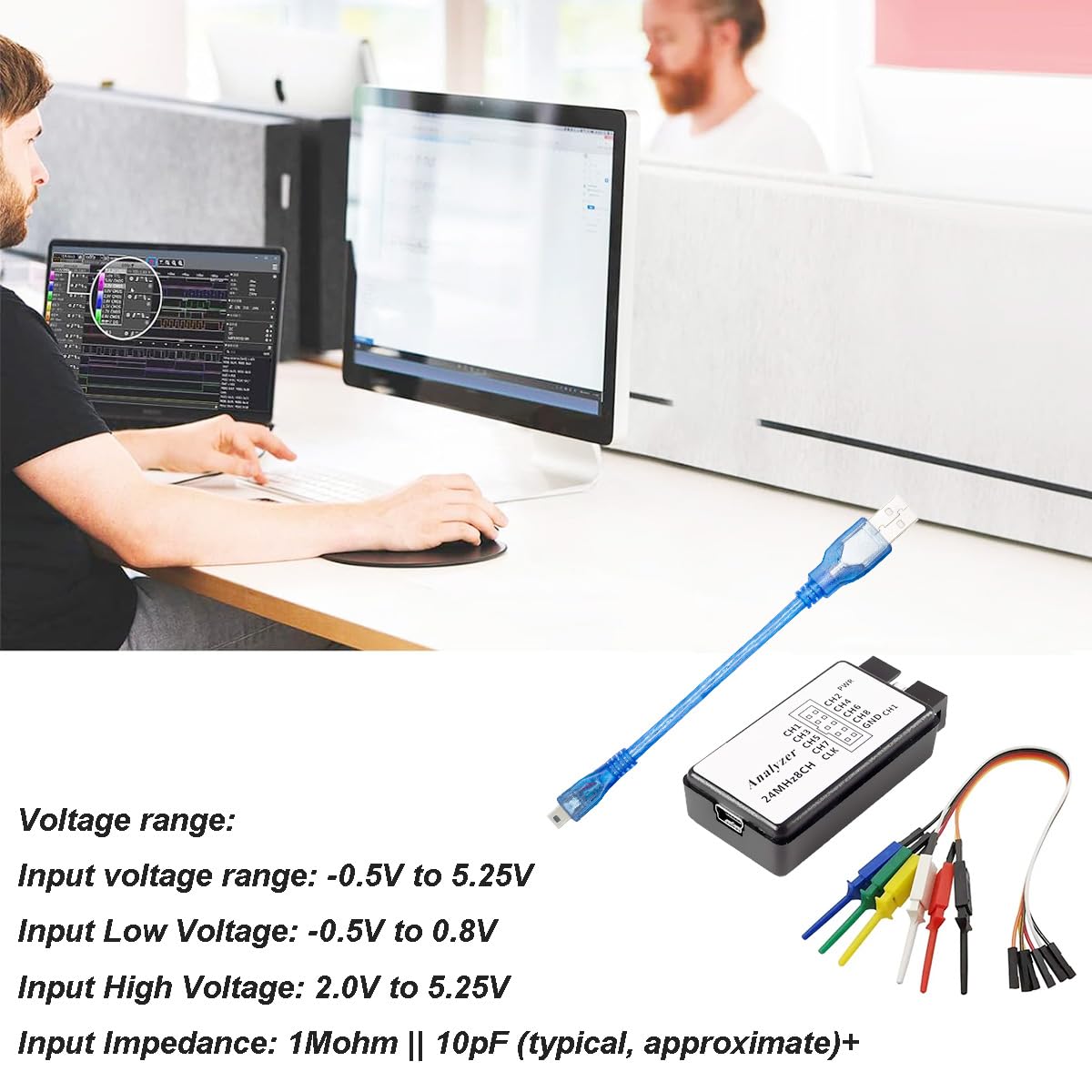

This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V systems.May work with 1.8V but not recommended. Input Impedance: 1Mohm || 10pF (typical, approximate). Crystal: +/-20ppm, 24MHz. Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz). Voltage range: Input voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input High Voltage: 2.0V to 5.25V Input Impedance: 1Mohm || 10pF (typical, approximate) Package Includes: 1 x Logic Analyser 1 x Mini to USB cable 22 x Female to female cable 12 x Test Hook Clip

Features

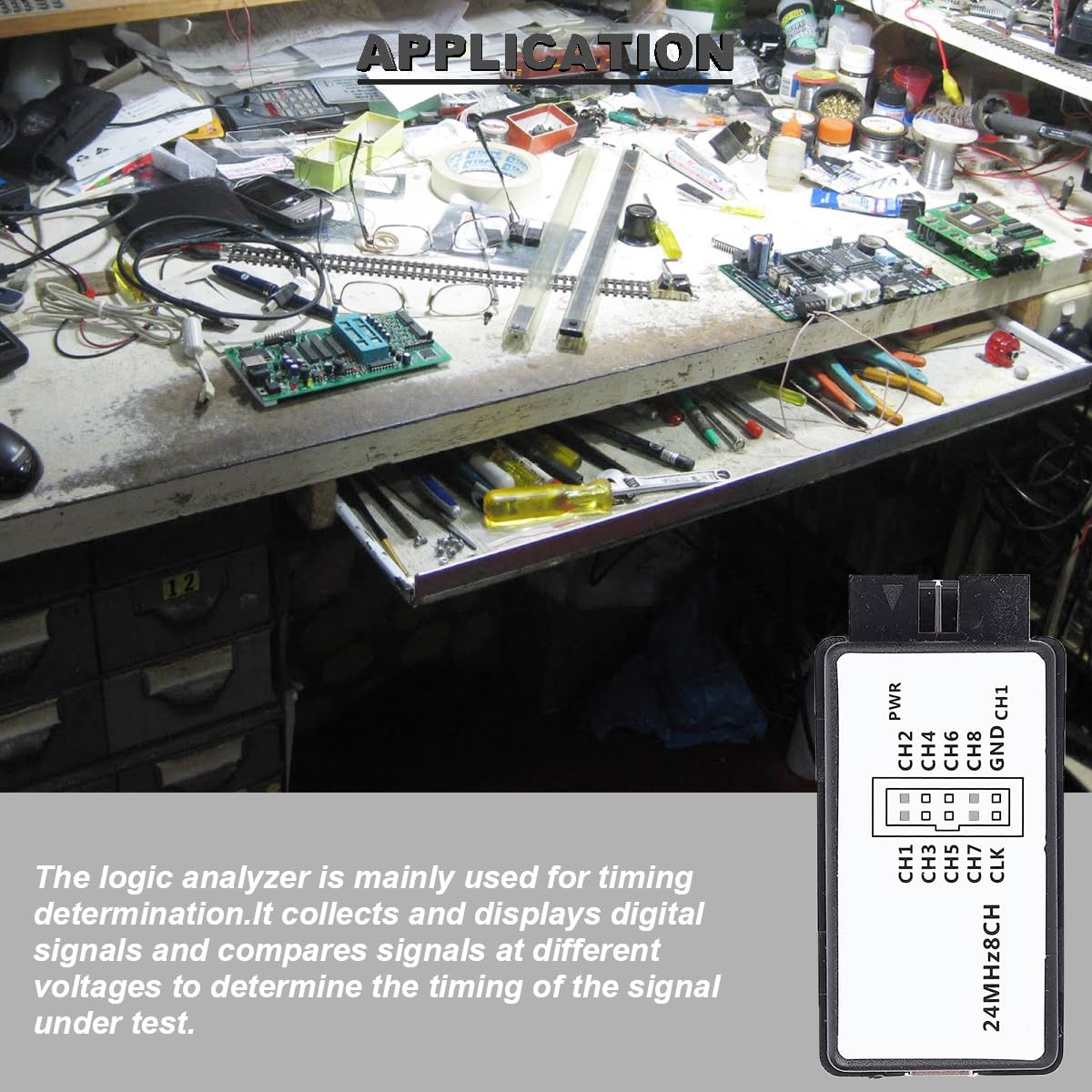

  • WHAT IT DOES: The logic analyzer is mainly used for timing determination.It collects and displays digital signals and compares signals at different voltages to determine the timing of the signal under test.Using a logic analyzer, you can easily set signal trigger conditions, capture signal interference glitches, and complete communication protocol analysis.
  • FEATURES: This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software.

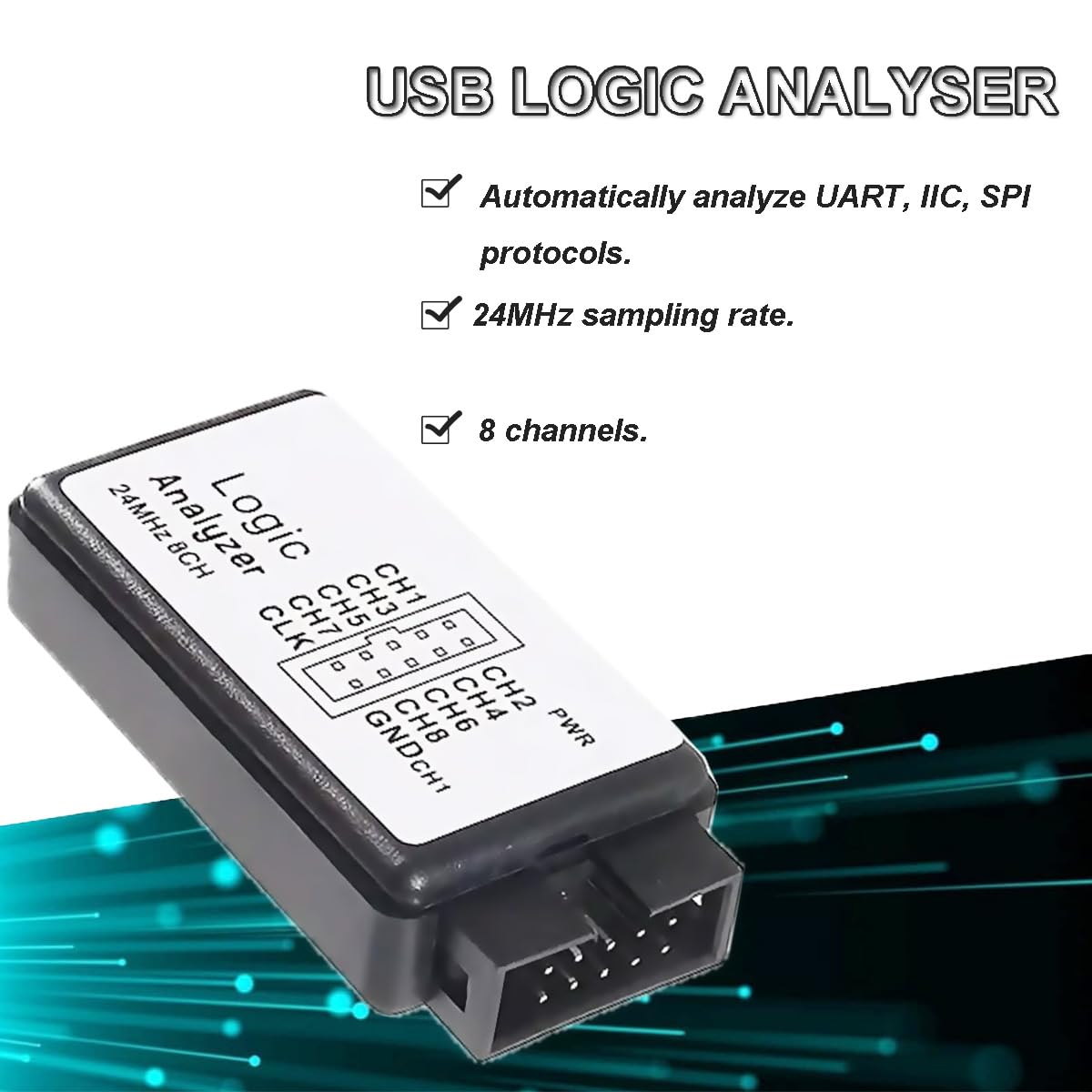

  • AUTOMATIC ANALYSIS: UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort.24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
  • CHANNEL VALUE: A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.
  • SAMPLING RATE: 24 MHz , can be 24MHz.16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
  • APPLICABLE TO VARIOUS OCCASIONS: The logic sampling rate of each of the 8 channels is 24M/s, generally about 10M, which is sufficient for various occasions.

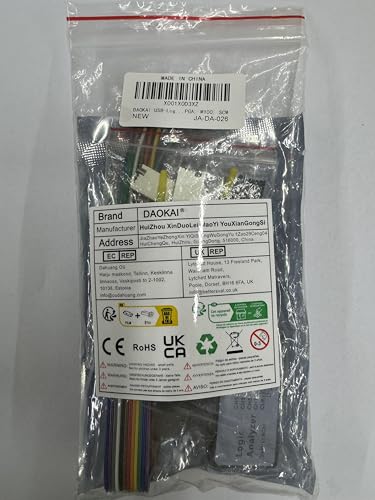

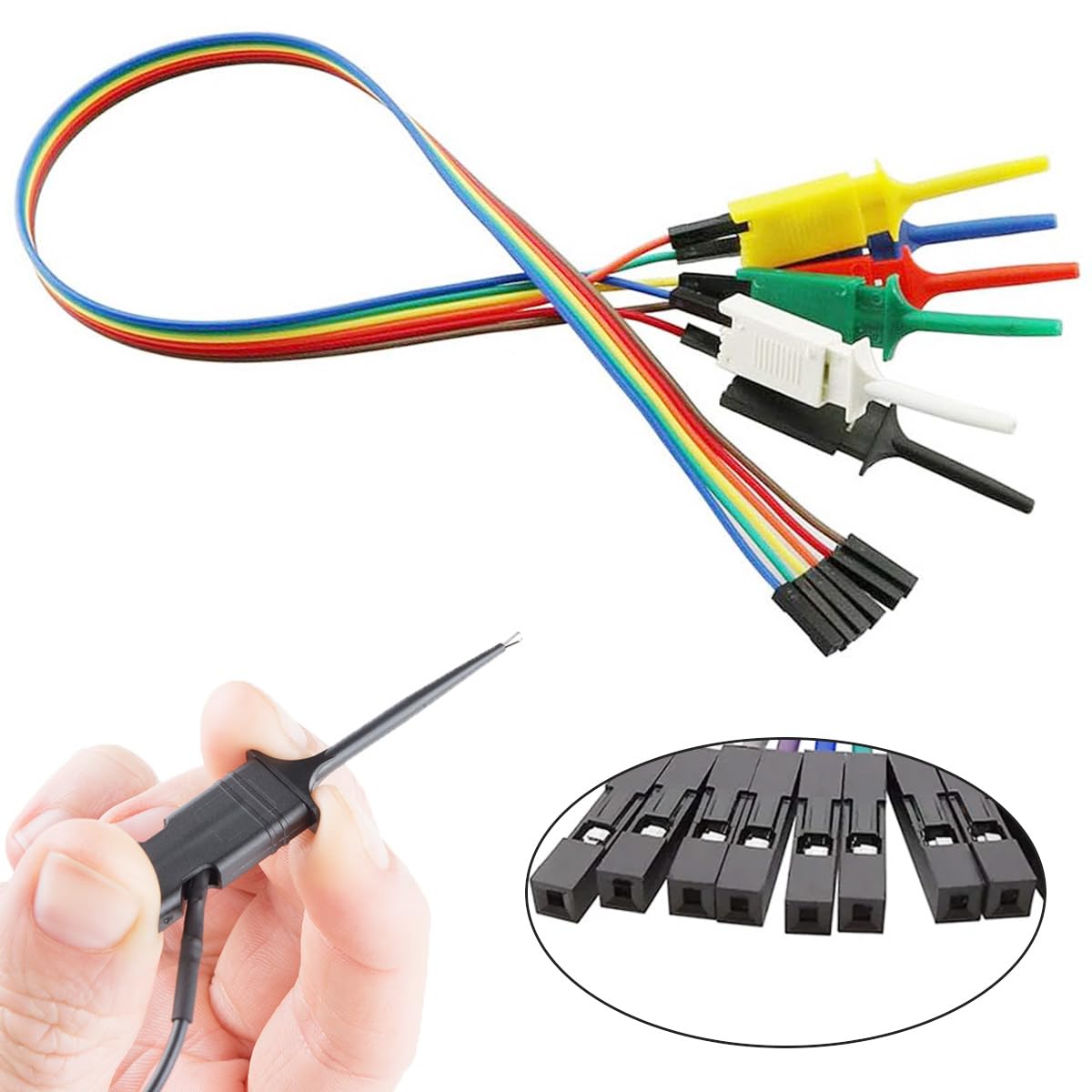

  • PRODUCTS INCLUDE: 1 x Logic Analyser;1 x Mini to USB cable;22 x Female to female cable;12 x Test Hook Clip.
