Digital Gas Flow Meter, Nitrogen Flow Meter, Portable Gas Mass Air Flow Meter, Compressed Air and Oxygen Flow Rate Meter Tester, Range 0-20L/min (MF5706)

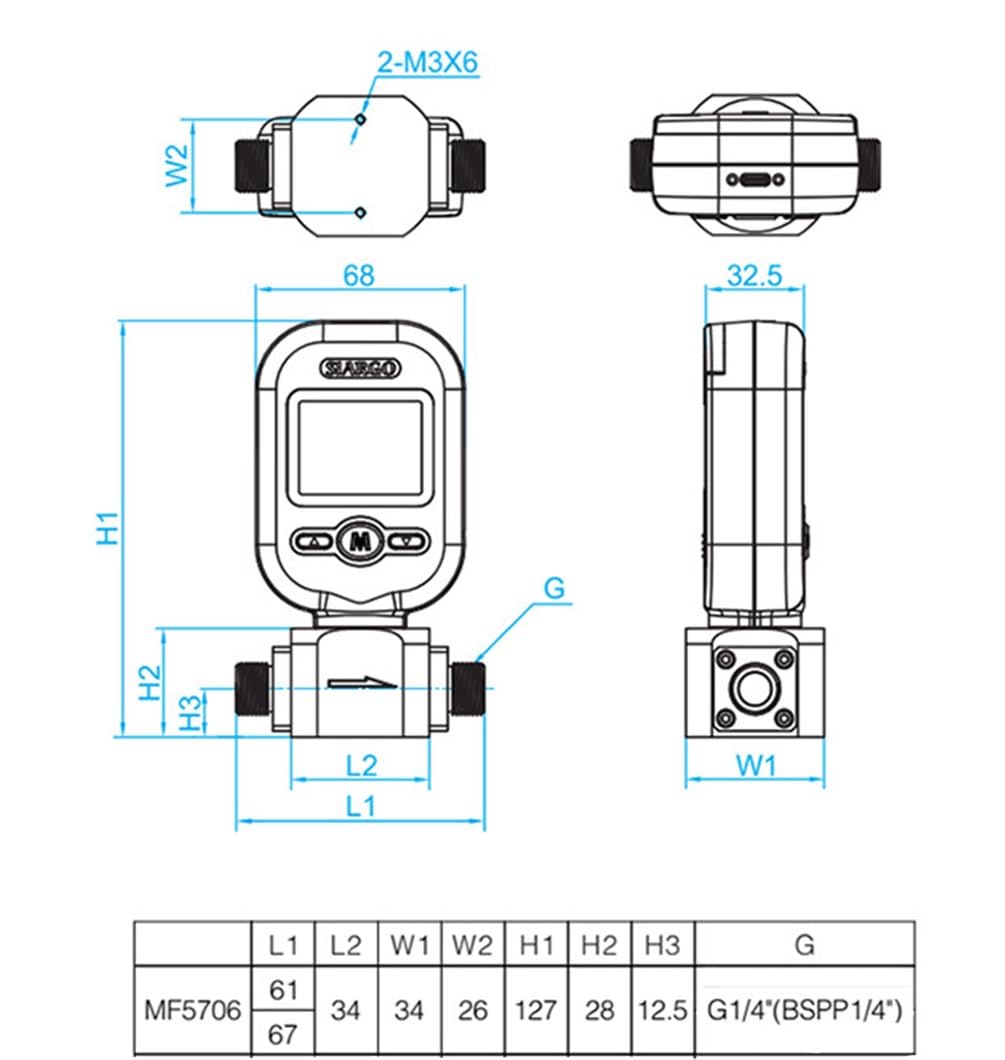

SPECIFICATION Model: MF5706 Flow Range: 0-20L/min Accuracy: +-(2.0+0.5FS)% Repeatability: 0.5% Response Time: <=2sec Resolution: 0.01L/min (instantaneous flow), 0.001m3 (cumulative flow) Work Pressure Limit: 0.8MPa Pressure Loss: <=600Pa Standard Calibration: Air (20degC, 101.325kPa) Pipe Dia.: 6mm Mechanical Interface: G 1/4" Protection Rating: IP50 Operating Temperature: -10degC~+55degC Storage Temperature: -20degC~+70degC Weight: 0.55 lb. PACKAGE 1 x Digital Gas Flow Meter 1 x Power Adapter 1 x Instructions

Features

• MEMS-based gas flow meter boasts a high sensitivity, allowing a very small start flow, used for instantaneous flow testing and flow accumulation calculations, applicable to air, compressed air, oxygen, nitrogen, and other inert gases
• Compressed air nitrogen flow meter has a built-in sensing chip for thermal mass flow measurement, no temperature and pressure compensation, ensuring a high accuracy

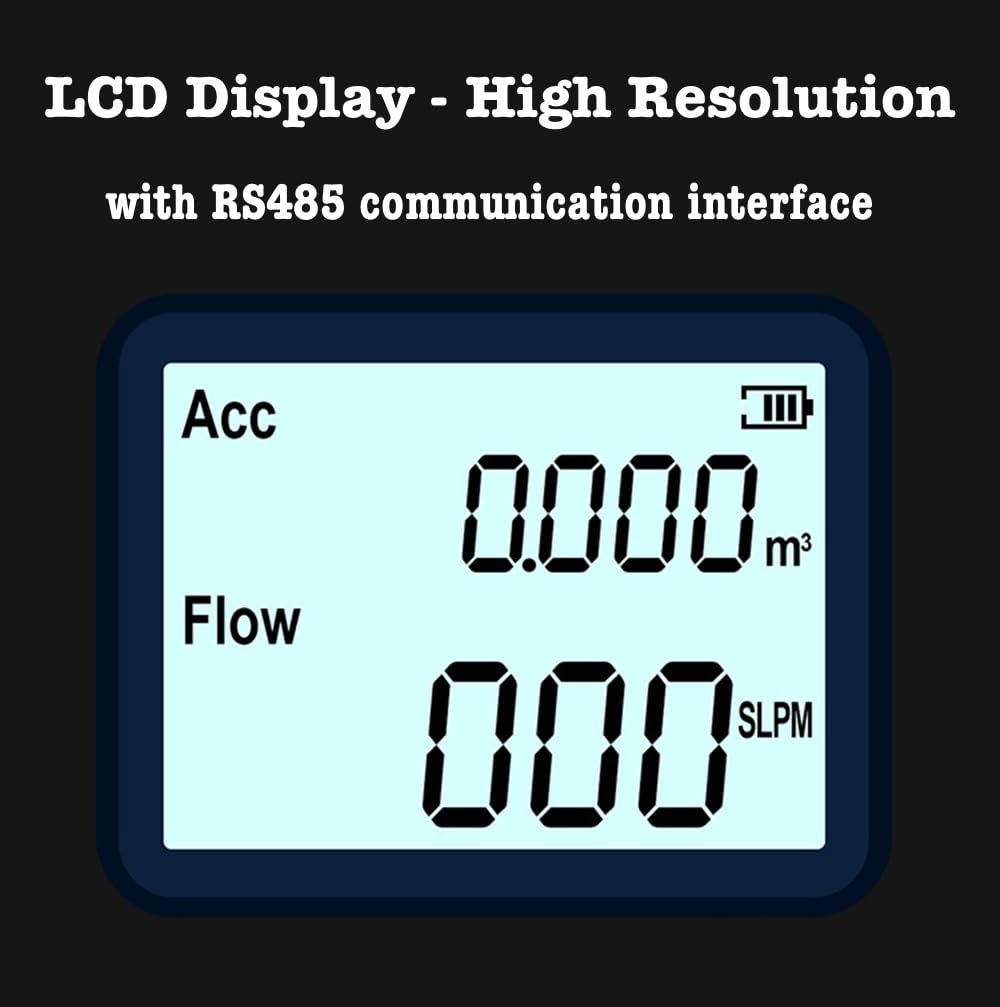

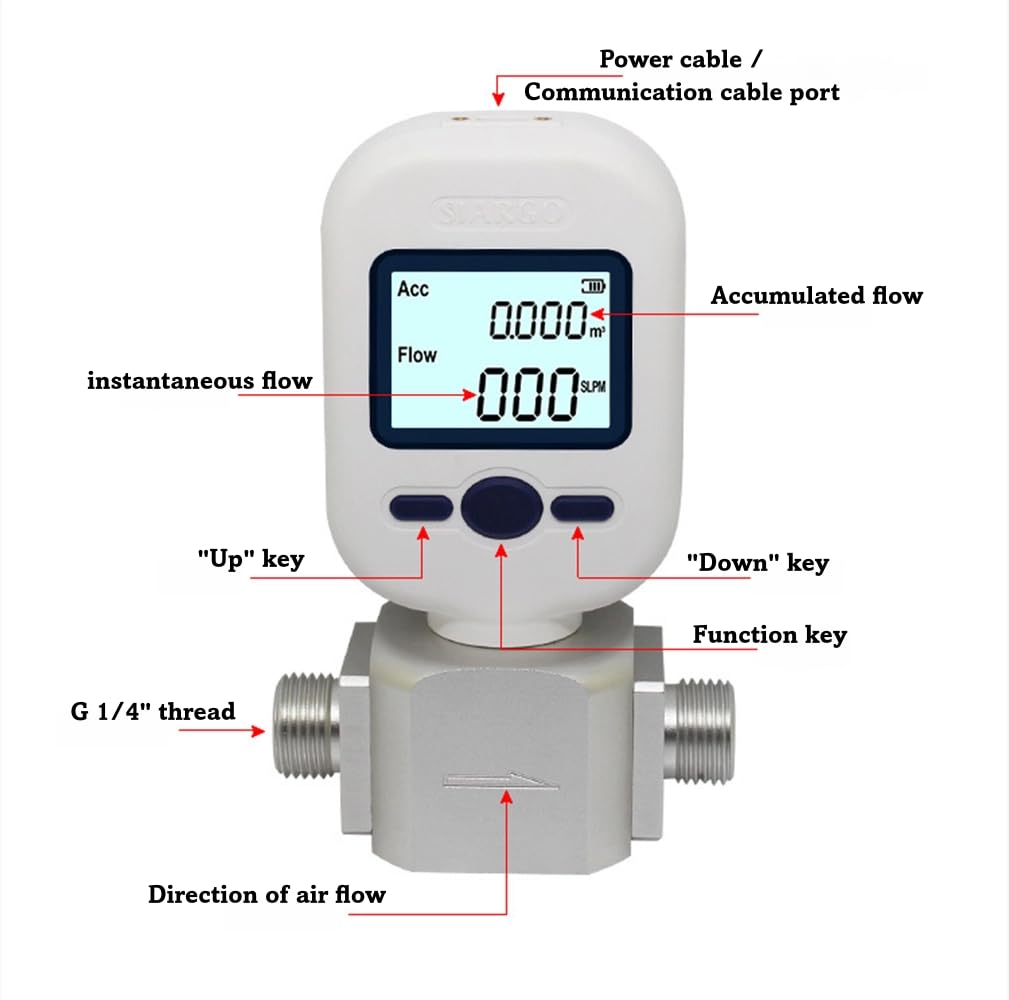

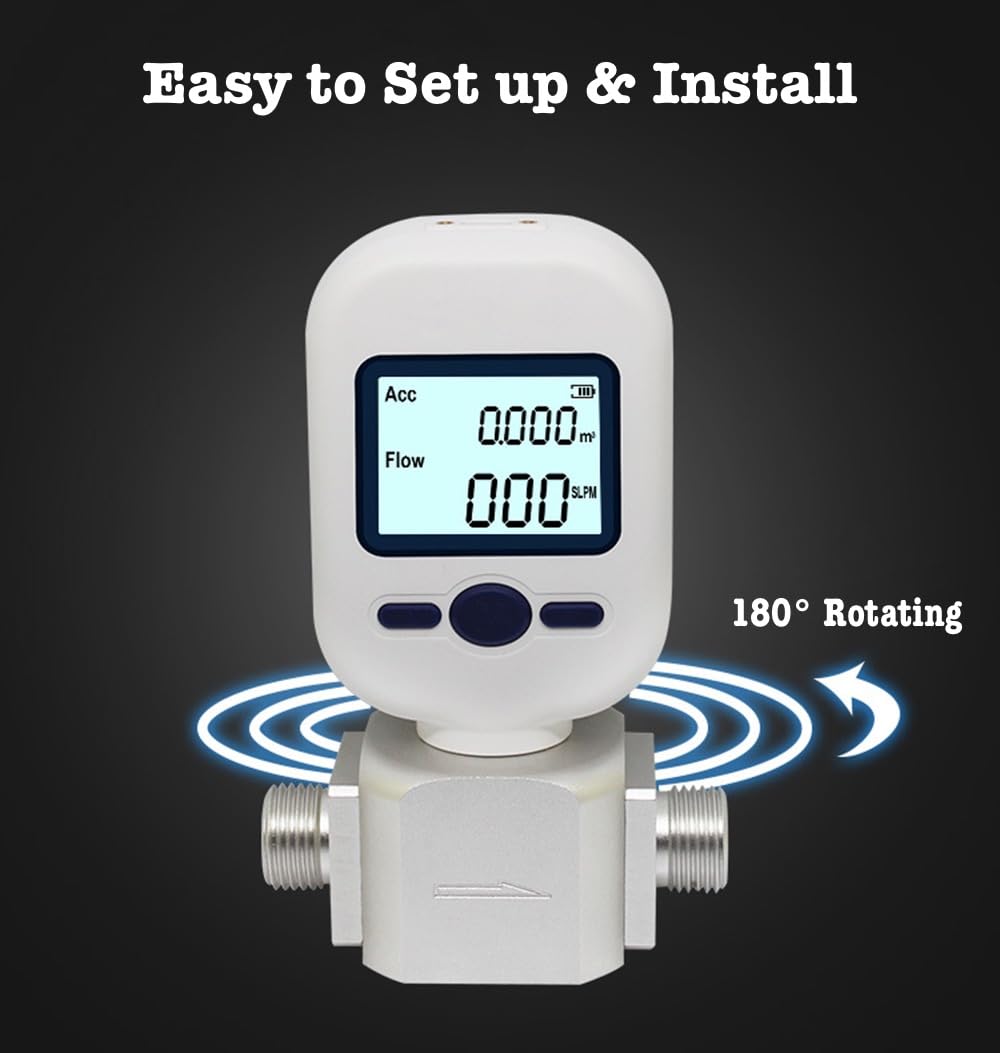

• Nitrogen air flow meter features an LCD display to show instantaneous flow and cumulative flow at the same time as well as the battery level, 180deg rotating for reading from any angle

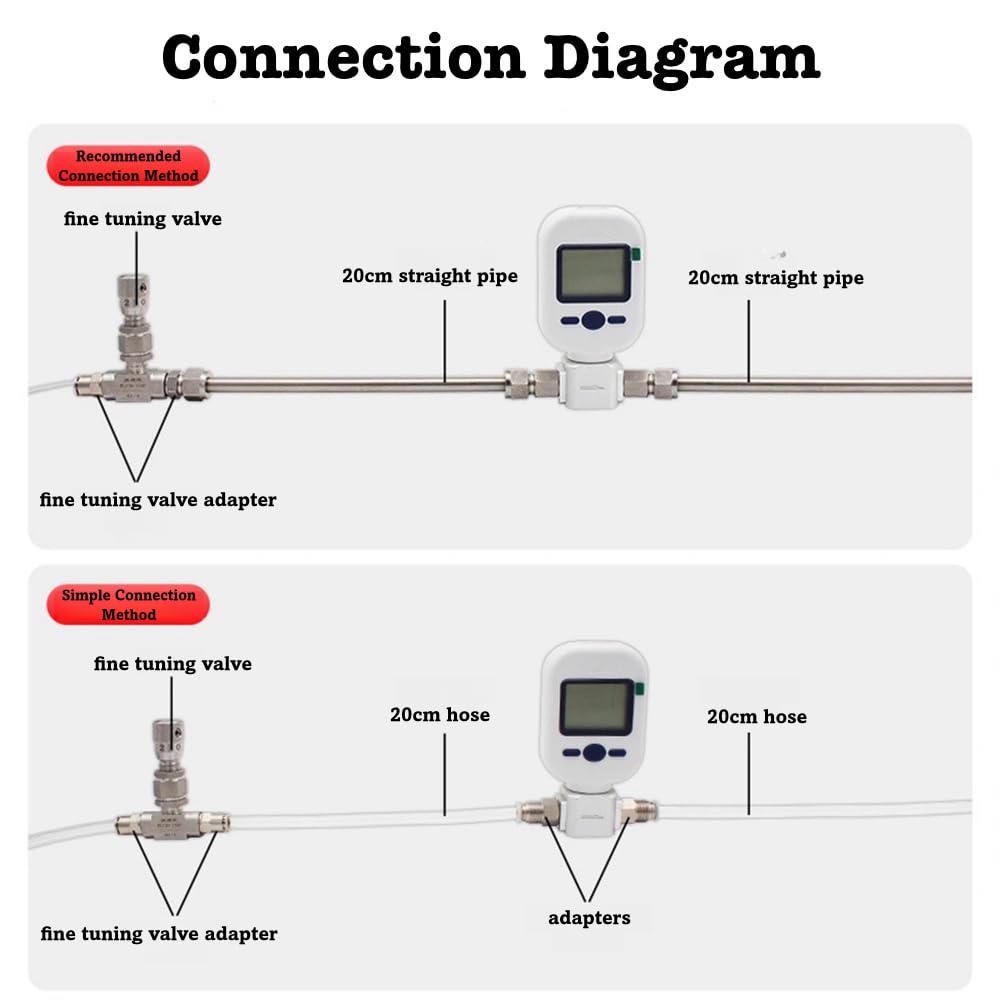

• Portable air flow meter has a compact body with G 1/4″ thread, easy to set up and install, designed with RS485 communication interface

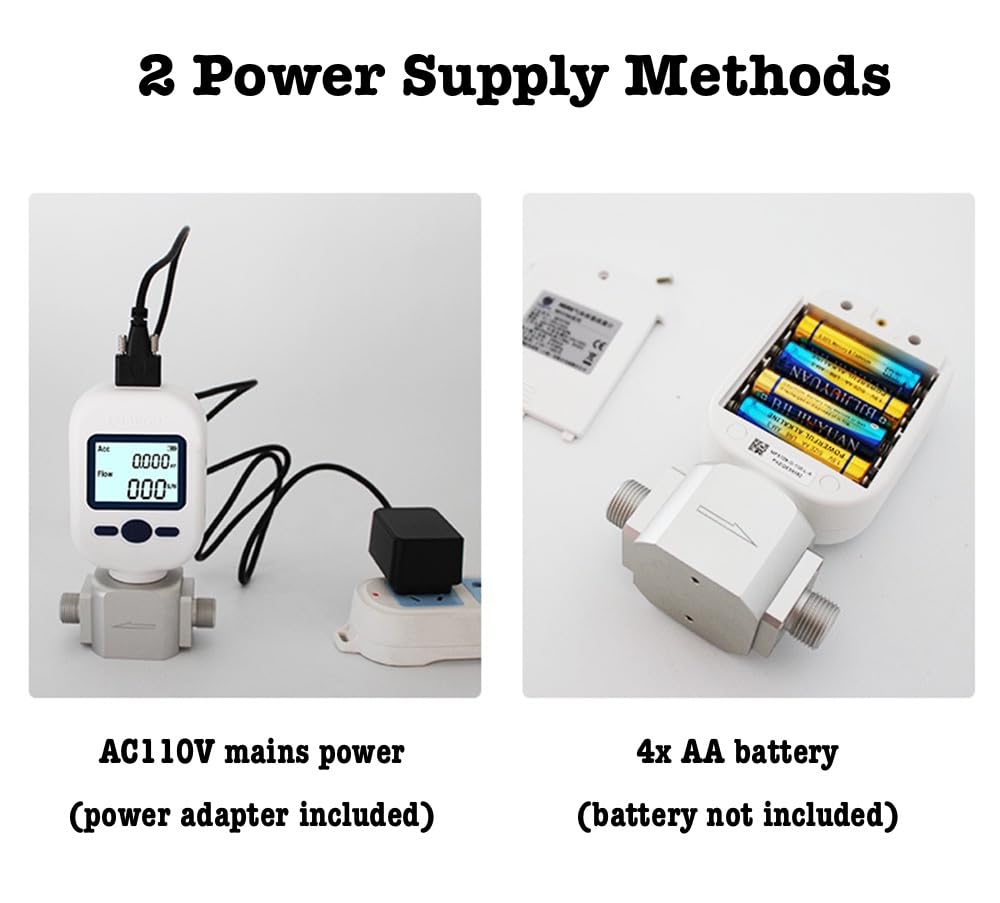

• Nitrogen flow meter allows 2 power supply methods, either powered by mains power or by 4x AA battery (not included)
• NOTE: To ensure the measurement accuracy of the flow meter, it needs to be preheated for 1min before use.
