Ferwooh 3PCS 3.3V 5V Power Supply Module for MB102 MB-102 Solderless BreadBoard Prototype Breadboard DC 6.5-12V or USB Power Supply

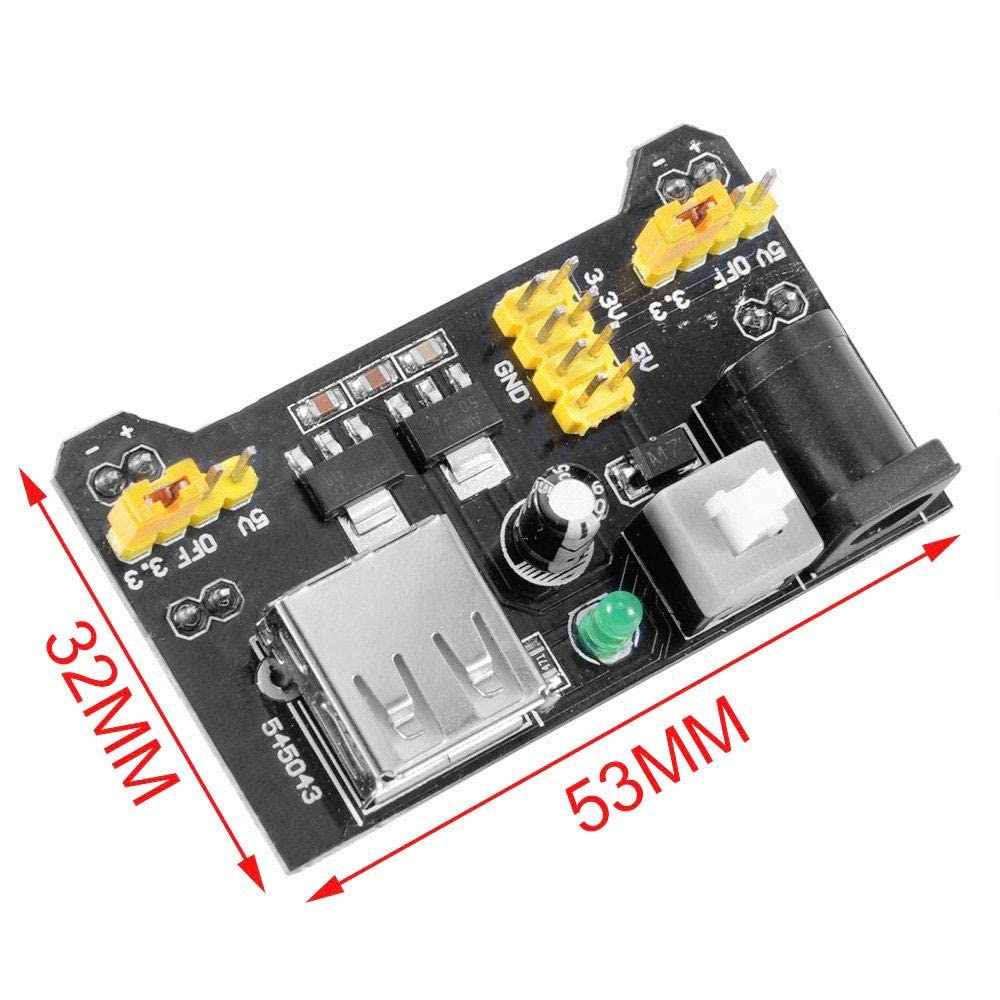

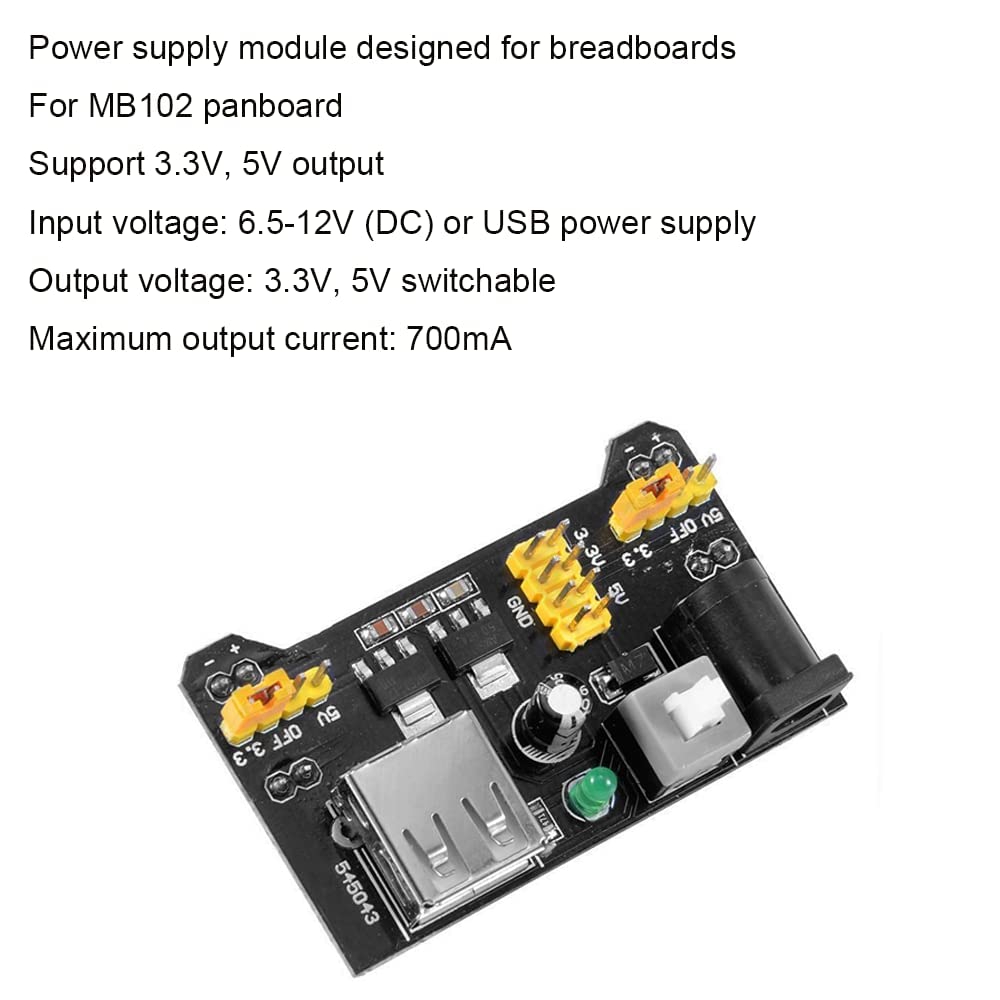

Features: Name: Breadboard Power Supply Module Input voltage: 6.5-12 V (DC) or USB power supply Output voltage: 3.3V/5V can switch over Maximum output current: <700 mA Locking ON / OFF Switch LED Power Indicator Two Groups of Header Pins Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V. On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads. Two ports of power output. You can switch the power voltage of both ports between 3.3V and 5V by the jumper cap. There is a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board. 3.3V/5V Power Supply Module provides dual 5 V and 3.3 V power rails, and has a multi-purpose female USB socket, can plugs directly into a solderless breadboard. The power board that is very easy to use, can be used with the MB102 breadboard. You have two independent power supply 3.3V or 5V. You can have two different voltages, or you can set the two to the same. The voltage output is set by the jump line on each output. Note: 1. The module inputs 6.5V-12V. If you input 5V, you will not get 5V voltage. There is a voltage difference at the input of the voltage stabilizing chip, otherwise it will not work. 2. If you only use 3.3V, the 5V output over there can get a stable voltage of 3.3V. 3.12V is a voltage limit. If the AD-DC adapter is used, it is recommended to use 9V to avoid the voltage unstable burning board. 4.Make sure that the module is correct on the bread board, so that the power supply is aligned with the red stripes. Package Included: 3 x MB102 3.3V 5V Breadboard Power Supply Module

Features

• [(product description)] Input Voltage : DC 6.5-12V; Output Voltage : DC 3.3V, 5V; Input do not exceed 700mA,Locking ON / OFF Switch, no need to unplug the power adapter,LED Power Indicator indicated when the board is powered up.

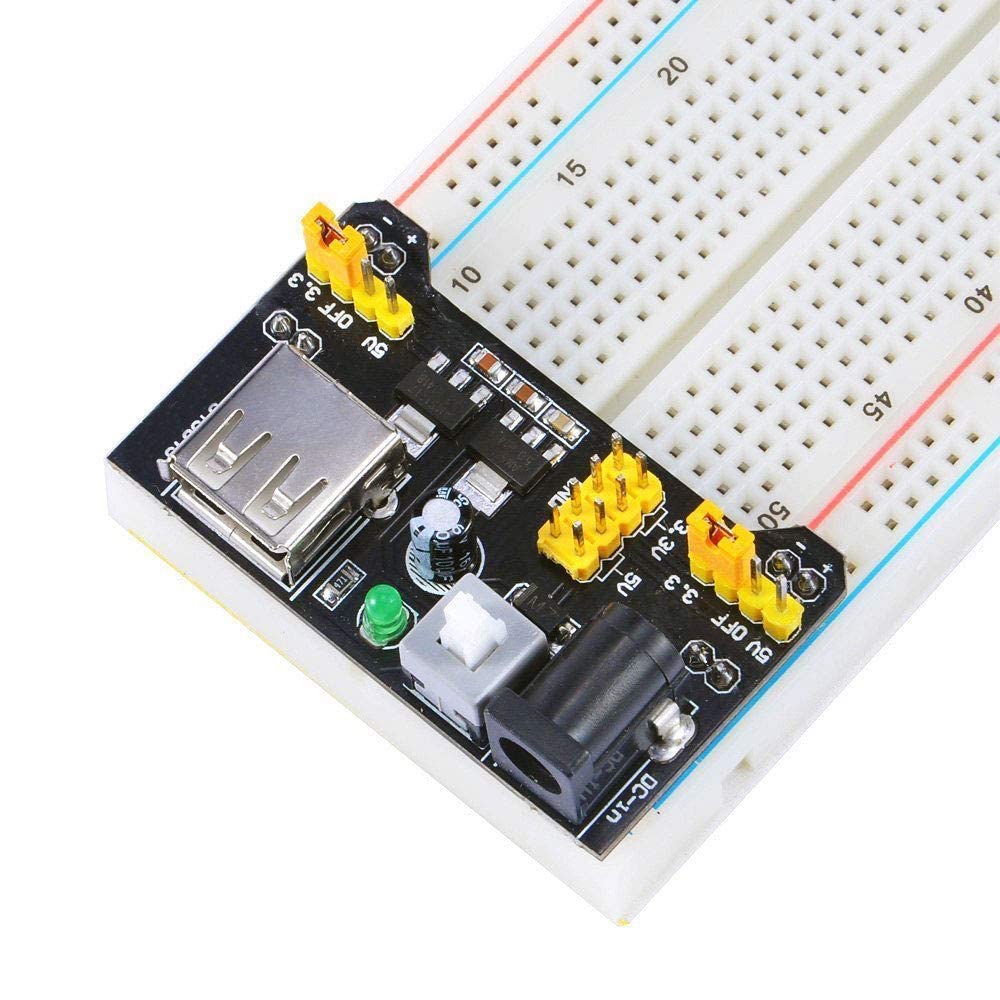

• [(Easy to use)] MB-102 power supply module, for MB102 Solderless Breadboard.Multiple power supply the module provides dual 5 V and 3.3 V power rails, and has a multi-purpose female USB socket, convenient external lead use.
• [(Features)] Output voltage switchable .Fluctuation two road independent control, jumper pins are utilised for selecting the voltage levels on each side of the breadboard power rails. You can choose between 5 V, OFF, and 3.3 V.Short Circuit Protection.
• [(Short circuit alarm)] The green power LED is connected to the output rail, when you applied a short to either of the voltage rails it would go out, this is an excellent indicator of a short in the power.
• [(Instructions for use)] 1. The module inputs 6.5V-12V. If you input 5V, you will not get 5V voltage. There is a voltage difference at the input of the voltage stabilizing chip, otherwise it will not work. 2. If you only use 3.3V, the 5V output over there can get a stable voltage of 3.3V.
