Freud Premier Adjustable Rail & Stile Bit – Round Over Bead with Tico Hi-Density Carbide for Maximum Performance – 1-11/16″ Dia., 3-3/4″ Length, 9/32″ Radius, 1/2″ Shank – 99-763

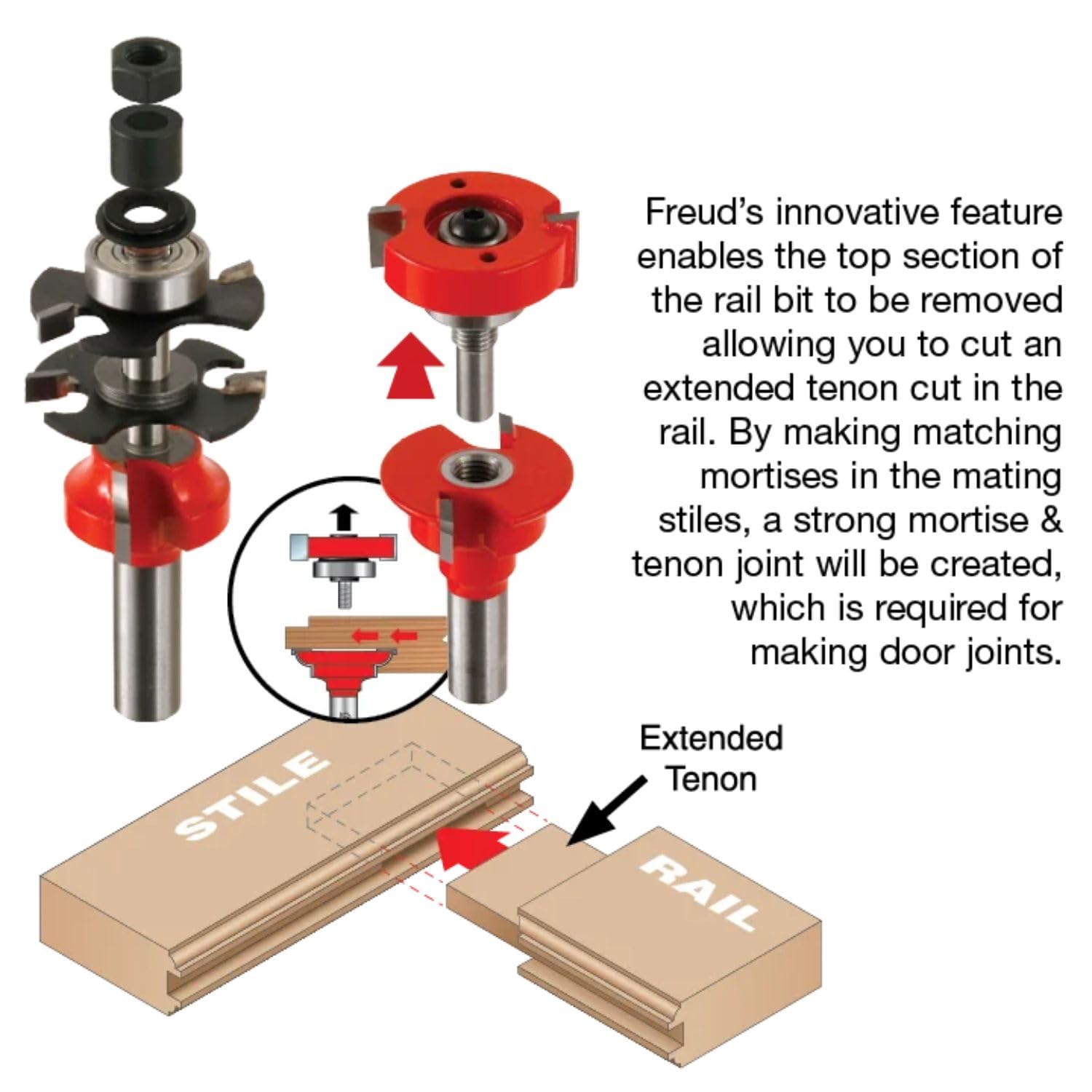

Product Description 1-11/16″ (dia.) Premier Adjustable Rail & Stile Bit with 1/2″ shank (round over bead), 3-3/4″ overall length From the Manufacturer Imagine two router bits that create any door in 5/8-Inch to 1-1/4-Inch door thickness range, create “rattle free” flat panel doors, create any length long tenon construction and more. That’s what Freud’s new Premier Adjustable Rail & Stile router bit systems do. They work exactly like traditional rail and stile router bits to enhance door construction. Adjustable shims enable both a tight fit when using plywood panels and the ability to use thick panels ( from 5.5mm to 6.35mm ). The unique cutter geometry virtually eliminates tearout. Top portion of cutter, including bearing and spindle, is removed to produce the front of the long tenon profile for blind tenons, through tenons, or bridle joints. Bits feature Freud’s Perma-Shield coating that reduces heat and pitch build up along with rust, and Freud’s TiCo Hi-Density Carbide to maximize bit life and material finish. Optional cutters are available for double profile doors (99-860) and glass panel doors (54-760) with variable thicknesses and long tenons for perfecting matching profiles on all doors because it’s the same set of router bits. This set produces a quarter round profile and all bits have 1/2-Inch shanks.

Features

• Patented Technology – Features Freud’s exclusive technology that produces extra-strong, long tenon joints, significantly enhancing the durability and structural integrity of your finished doors.
• TiCo Hi-Density Carbide – Freud’s exclusive carbide blend is specially formulated for each application, delivering maximum bit life, durability, and superior material finish.

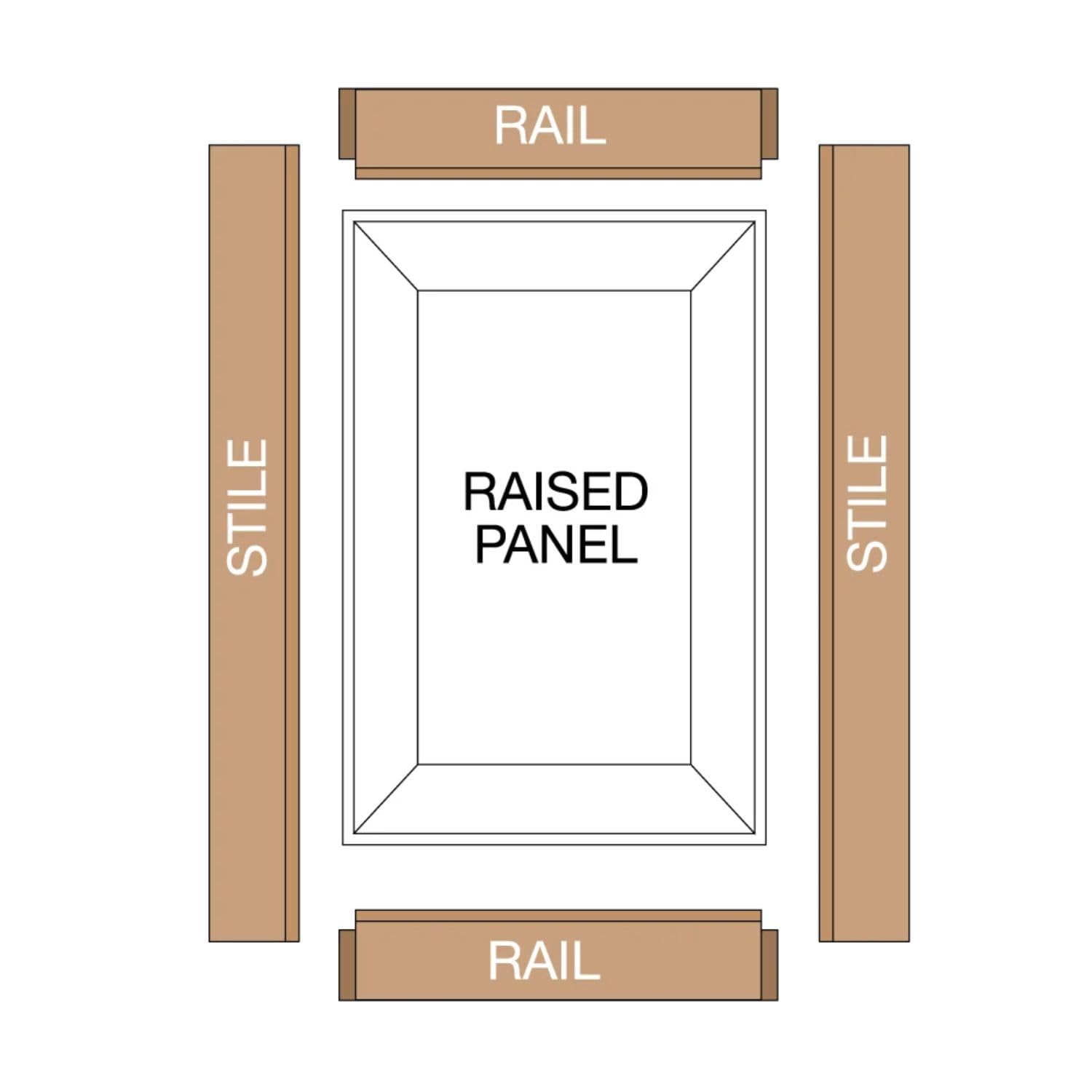

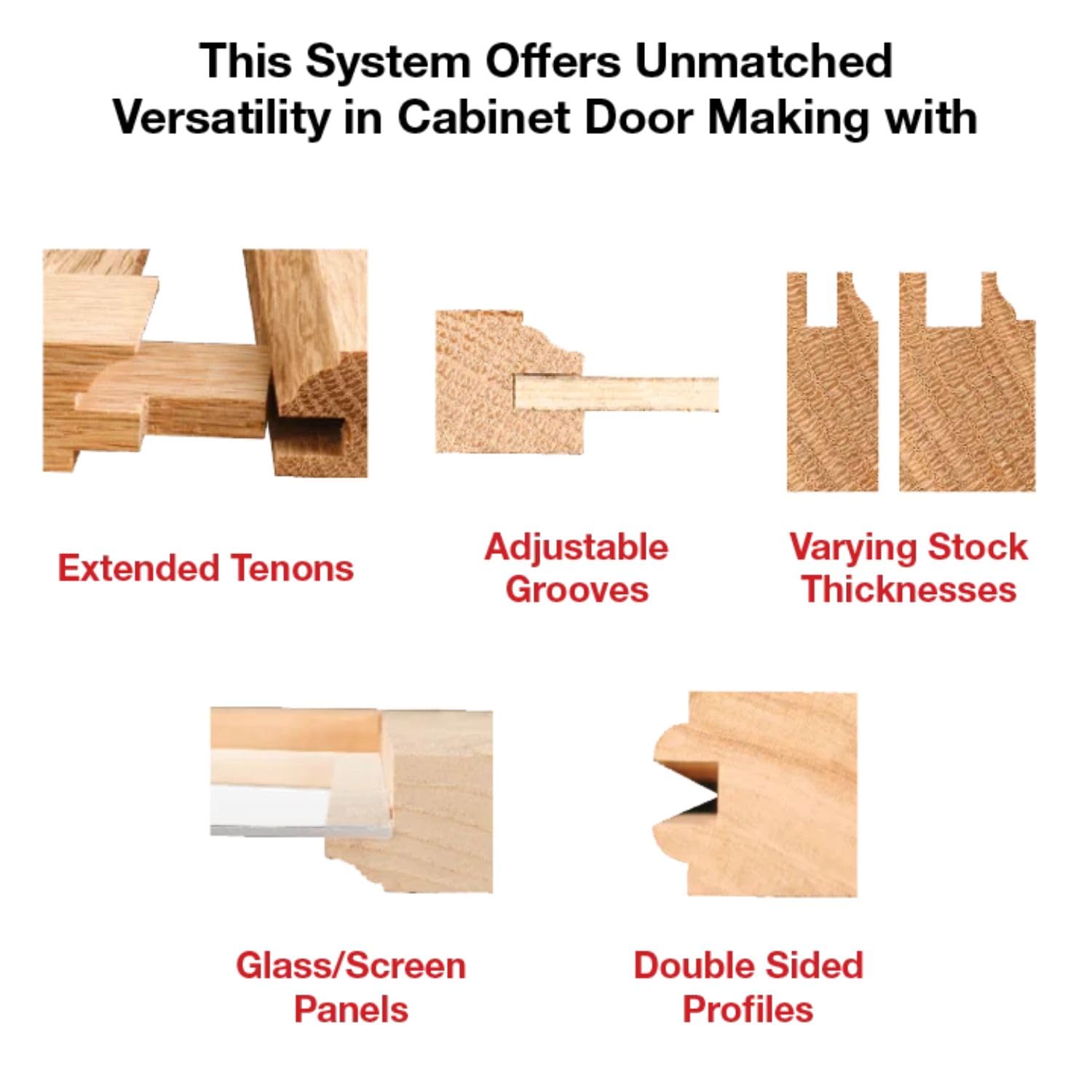

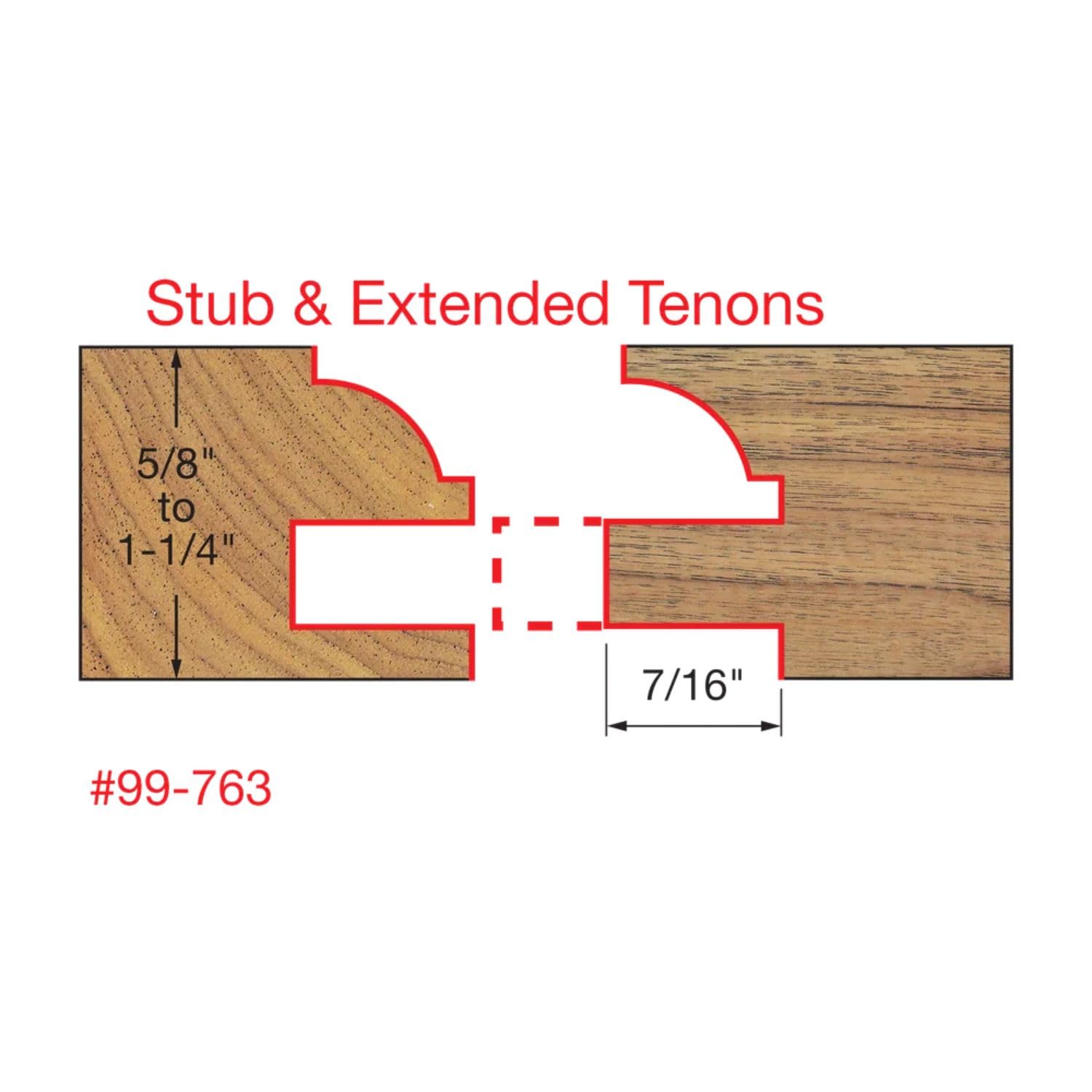

• Build Unique Profiles – Easily create professional-quality rail and stile doors using your choice of five different profiles with thicknesses ranging from 5/8″ to 1-1/4″, this allows you to craft a wide range of door construction.
• Table-Mounted Routers – Designed for use in table-mounted routers, this system delivers smooth, accurate cuts in both hardwood and softwood, making it ideal for professional cabinetmakers and serious woodworking enthusiasts.
• Perma-Shield Coating – Reduces friction and bit drag, protects against resin build-up and corrosion, and ensures smoother, cleaner cuts with less effort.
