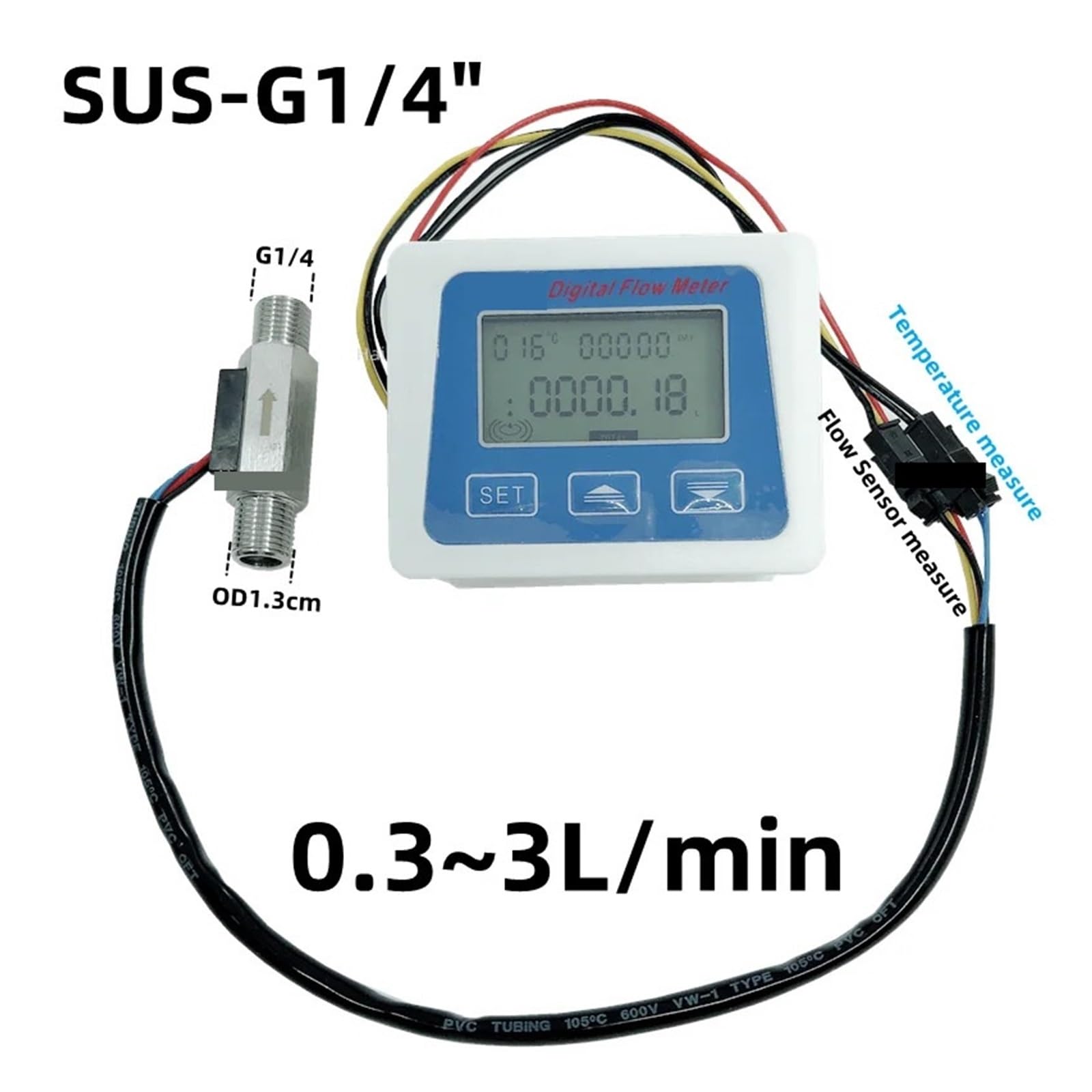

High Sensitivity 0.3~3L/min 1/4″ Water Flow Sensor Meter Digital Flowmeter Flow Sensor G1/4 Turbine Temperature Measurement for Copper/PVC Pipe

Flow Sensor Specification : Material body : Stainless steel 304 inside plastic turbine supporter. Thread size : Male g1/4″ – about OD1.3cm Color : Silver colour Flow rate :0.3~3L/min( your water flow pressure must can turn the turbine running , > 0.3L/min , small or huge flow please choose other sizes flow meter ) Flow Pulse: F(Hz)=(108xQ) +-10% Q=L/min Accuracy + /- (5~10)% Working Voltage:DC 1.8V~.5V( low power for battery working only) Load Capacity: =1.5 uA (low power) Liquid Temperature: Max 80

Features

• 1. The inside plastic turbine supporter further enhances its performance, providing accurate measurements for a long time.
• 2. With a flow rate ranging from 0.3 to 3L/min, our Flow Sensor guarantees accurate readings. It is designed to turn the turbine running at water flow pressures above 0.3L/min
• 3. The flow pulse of our Water Flow Sensor Meter is calculated using the F=(108xQ) +-10%
• 4. With a load capacity of =1.5 uA, it consumes minimal power while providing accurate measurements.
• 5. Versatile Temperature Range: The Water Flow Sensor Meter can withstand liquid temperatures up to a maximum of 80degC
