IndusTec Double Pole Double Throw 2 Position Latching Maintained 6 Pin Toggle Switch 20 Amps at 120 VAC

Industrial Technicians Presents DPDT 2 Position switch 20 amps 12V DC Has 2 positions with no off in center Latches Stays Locks in both positions Switch will stay where you operate it to 20 Amps at 12V DC and 10 Amps at 24V DC A must have for that DYI in the family Maintained and Momentary explained A Maintained switch is noted several ways in different industries On Off On or Latched or Latching or Locking It is going to Latch Lock in position you or someone else places it. Used for non jogging operations like pumps fans or lights A momentary switch denoted in several ways also is (On) Off (On) or Resetting or automatic reset or springing This term means it will return spring reset to a position (usually off) when you release it. For jogging operations like lift hoist winch or door

Features

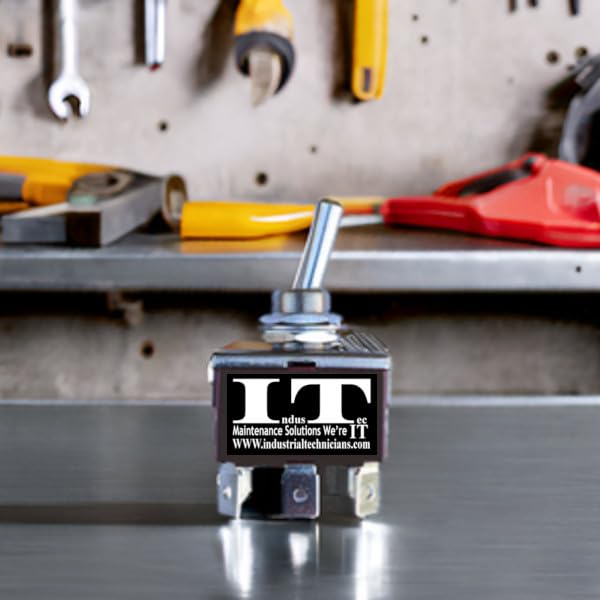

• A toggle switch is a type of electrical device that is actuated by moving a lever back and forth to open or close an electrical circuit. A maintain switch changes its position when actuated and will remain in the position until actuated again. Stays/ Maintains / Latch / Locks in position placed. This particular switch has a bat style joystick handle.
• Mounting Hole size is 12 MM or 1/2 in just pop it in. Two vital components that confirm what sorts of connections a switch makes are pole and throw. These are classified based on the connections they make. The terms pole and throw are also used to describe switch contact variations. The number of poles is the number of separate circuits which are controlled by a switch. The number of throws is the number of separate positions that the switch can adopt.
• 15 amps at 250 VAC and 20 Amps At 125 VAC or 20 Amps At 12V DC and 10 Amps at 24 VDC. Also make sure you are using a switch and wires sufficient to handle the power that you are carrying. In higher draw applications, a relay may be needed. Always use a fast blow fuse of rated amperage. Use terminals of good enough grade to handle the amperage in switch to avoid heat and damage.

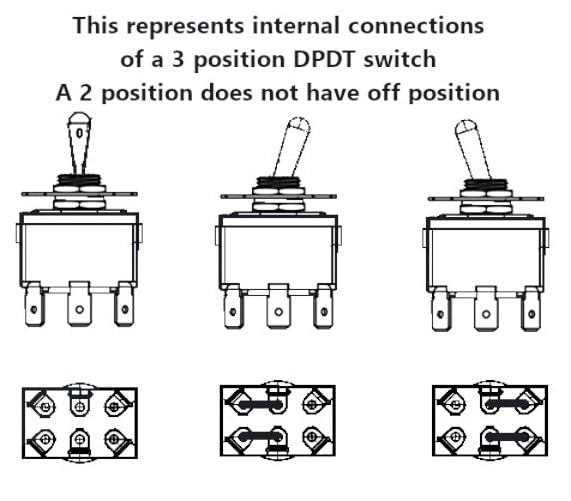

• Double Throw Double Pole Two Position. DPDT is equivalent to two SPDT switches. It routes two separate circuits, connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which each of the two contacts can be routed. They can connect two different power sources to two different loads or accessories at the same time.
• Can serve as a replacement for PTO electric clutch Wheel Horse 78-9670. Our Heavy Duty and Durable Toggle Switches are great in Car, Car accessories, Truck, Boat, ATV, UTV, RV, Race Cars, Racing needs, Airplane, Aviation, Nitrous, NOS, Jack Hoist Actuator, Liftgate, LED Light Bar, Sound System, Outdoor Lights Camper, Trailer, Headlights, Electronics, Dashboard Panel, Solar, Awning, Motorcycles, Winch, Automation, Robotics, Kill Switch, Auxiliary Cooling Fan, DIY Projects and so much more!!!
