Marshall CV225-M Pro Series 2.5MP Full HD Weatherproof Lipstick Camera (25/30/50/60 fps), 2.5 Megapixel 1/3″ CMOS Sensor, 3.6mm MP M12 Mount Lens, 19.5mm Diameter (0.76″) Cylinder

Marshall CV225-M Pro Series 2.5MP Full HD Weatherproof Lipstick Camera (25/30/50/60 fps), 2.5 Megapixel 1/3″ CMOS Sensor, 3.6mm MP M12 Mount Lens, 19.5mm Diameter (0.76″) Cylinder Key Features – 1/3″ 2.5 Megapixel CMOS Sensor – 3.6mm MP M12 Mount Lens – interchangeable – IP67 weatherproof camera enclosure w/ 1/4″-20 mount (rear panel) – 118″ (3m) Breakout Cable includes 12V power (2.1mm-center pin +) connector, RS485 phoenix connector, and 3G/HD-SDI (BNC) – 111″ (2.8m) to OSD Joystick – RS485 (Visca) adjustable – CV-RCP-100 compatible – 19.5mm diameter (0.76″) cylinder – 3GSDI / HDSDI (BNC) – 0.2Lux (COLOR-Day)/0.1Lux (B/W-Night), 0.005Lux (DSS on) – Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedastal) – Wide Dynamic Range (ACCE), Digital Noise Reduction (DNR), Digital Defog, HLC – OSD Joystick on Cable assembly – Includes 12V power supply in box Specifications – Total Pixels: 1956 (H) x 1266 (V) / 2,476,296 (Pixels) – Active Pixels: 1944 (H) x 1092 (V) / 2,122,848 (Pixels) – Scanning System: 16:9 Progressive Scan – Video Output: 3GSDI & HDSDI – Resolution/FR: 1920x1080p60, 50, 30, 25fps – 1920x1080i60, 50, 30 ,25 – 1280x720p60, 50, 30, 25 – Horizontal TV: More than 1000 TVL – Lens Mount: 3.6mm F2.0 M12 Mount – interchangeable w/o cap – Electric Shutter: Manual (1/30 or 1/25~1/30,000 sec) – Auto White Balance: AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain) – Digital Noise Reduction: DNR (OFF/LOW/MIDDLE/HIGH) – Wide Dynamic Range: WDR (OFF/LOW/MIDDLE/HIGH) – Mirror Image: Mirror, Horizontal or Vertical Flip – Operating / Storage Temp: -10degC~50degC (-20degF~70degF) – Operating Humidity: IP67 rated; ability to submerge in water up to 45 minutes at a time – Power Supply: 12V DC 1.0A – Power: 12V DC (7VDC to 15VDC) Max 6W – Dimensions: 19.5 x 19.5 x 62.5mm – Weight: Approx.0.42Lbs with cable

Features

• 1/3″ 2.5 Megapixel CMOS Sensor 16:9
• IP67 weatherproof camera enclosure w/ 1/4″-20 mount (rear panel)

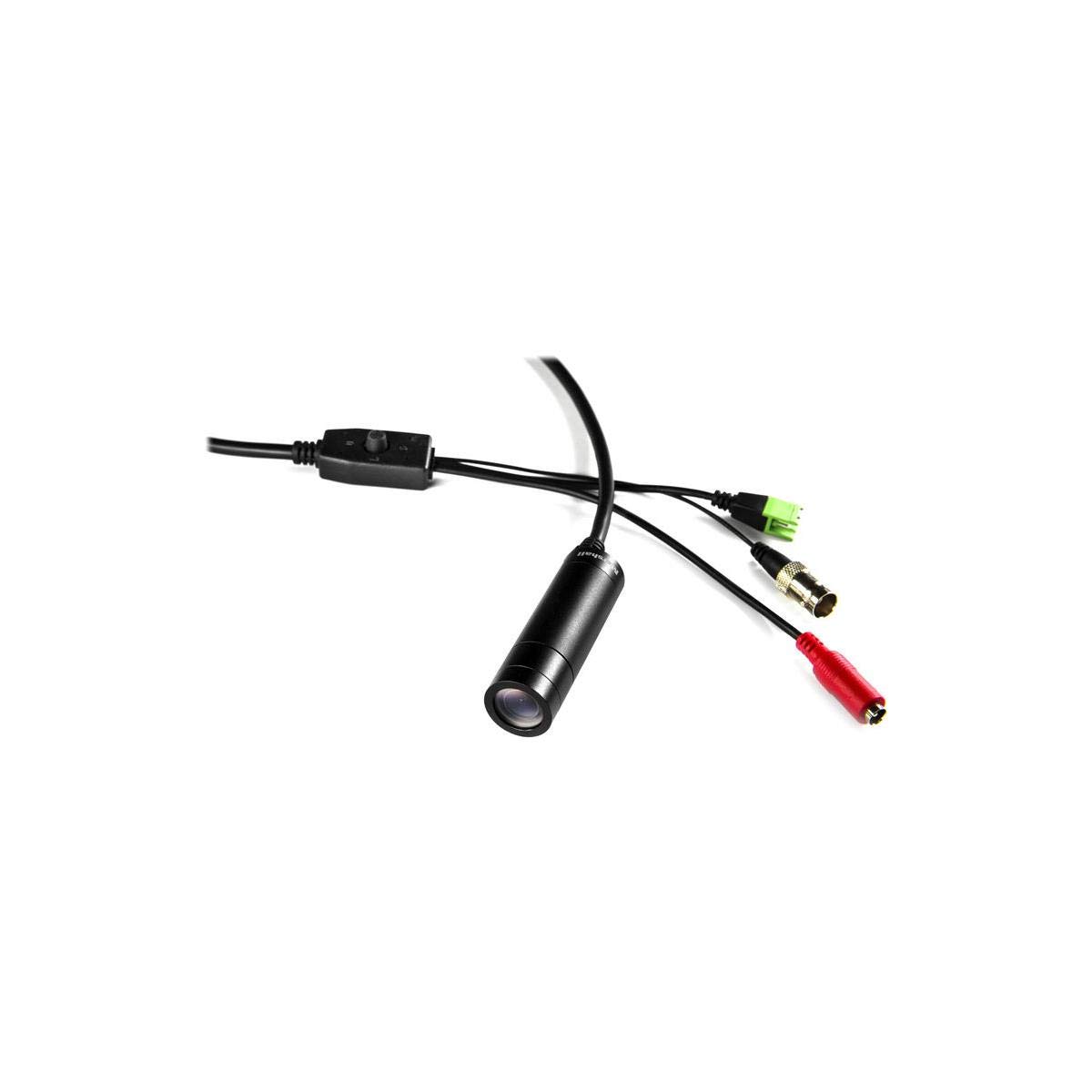

• 118 inch (3m) Breakout Cable includes 12V power (2.1mm-center pin +) connector, RS485 phoenix connector, and 3G/HD-SDI (BNC) – 111 inch (2.8m) to OSD Joystick
• 0.2Lux (COLOR-Day) / 0.1Lux (B/W-Night), 0.005Lux (DSS on)
• Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedastal)
