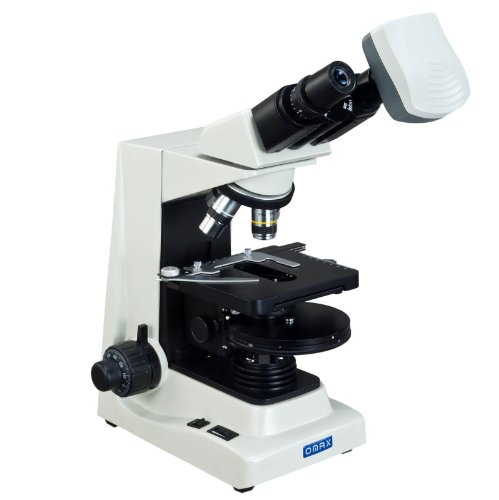

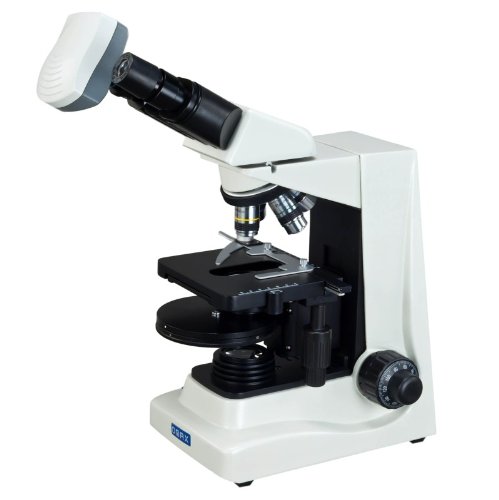

OMAX 40X-1600X Advanced Binocular Phase Contrast Compound Microscope with Plan Turret Phase Contrast Kit and 9.0MP USB Camera

Brightfield and phase contrast microscope system provides options for viewing cells depending on your applications. This digital biological binocular microscope also provides a 9.0MP (3488×2616 pixels) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can be used to make measurements. The phase contrast digital plan Siedentopf compound microscopy comes with a 30deg inclined 360deg swiveling compensation free binocular viewing head, quintuple reversed nosepiece, four plan objectives, large double layer mechanical stage with scales, and variable intensity halogen transmitted illumination system. It offers eight levels of brightfield magnification from 40X-1600X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: 10X, 20X, 40X (spring), 100X(spring, oil). It also offers eight levels of magnification power: 100X-160X-200X-320X-400X-640X-1000X-1600X. This type of microscopy is suitable for research laboratories and advanced applications in clinical offices. There is a wide range of accessories available including darkfield and carrying case.

Features

• Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Phase contrast objectives (in phase contrast kit): PLAN 10X, 20X, 40X (spring), 100X (spring, oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable
• Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Phase contrast objectives (in phase contrast kit): PLAN 10X, 20X, 40X (spring), 100X (spring, oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable
• Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Phase contrast objectives (in phase contrast kit): PLAN 10X, 20X, 40X (spring), 100X (spring, oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable
• Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
• Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper to protect objectives and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and swing-in filter holder, rack and pinion adjustment; Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually
• Illumination: transmitted, 6V/20W halogen lamp, variable intensity; All metal mechanical components; Digital camera: – true color 3488 x 2616 pixels (9.0MP) – 0.45X reduction lens to get larger field of view – Software compatible with Windows XP/Vista/7/8/10 – Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images – USB cable included
• 5-year warranty against manufacturing defects
