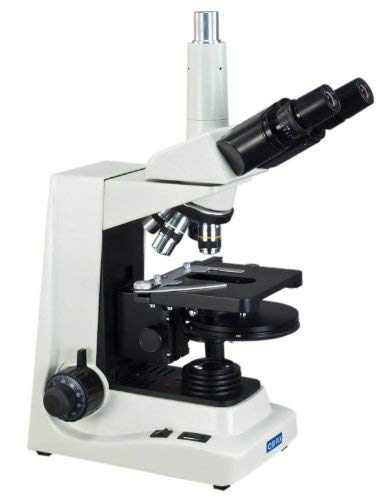

Phase contrast and brightfield microscope system provides options for viewing live cells depending on your applications. The compound PLAN Siedentopf trinocular microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four PLAN objectives, large double layer mechanical stage with scales, variable intensity halogen transmitted illumination system and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 1600X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: 10X, 20X, 40X, 100X. It also offers eight levels of magnification power: 100X-160X-200X-320X-400X-640X-1000X-1600X. This type of microscopy is suitable for research laboratories and advanced applications in clinical offices.
Features
- Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X , 10X, 40X (spring), 100X (spring, oil); PLAN phase contrast objectives (in phase contrast kit): 10X (0.25), 20X (0.40), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable
- Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X , 10X, 40X (spring), 100X (spring, oil); PLAN phase contrast objectives (in phase contrast kit): 10X (0.25), 20X (0.40), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable
- Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X , 10X, 40X (spring), 100X (spring, oil); PLAN phase contrast objectives (in phase contrast kit): 10X (0.25), 20X (0.40), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable
- Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece; A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm)
- A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both sides with tension control; Stage upward stopper to protect objectives and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment
- Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
- 5-year warranty against manufacturing defects
