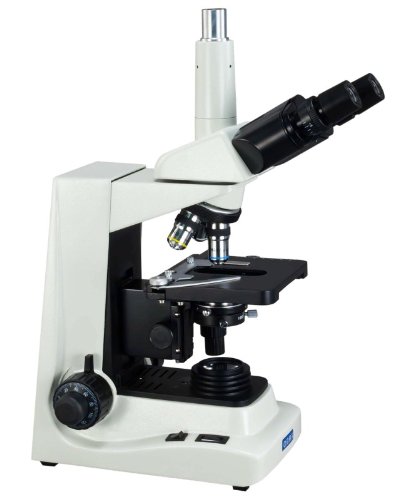

OMAX 40X-1600X Advanced Trinocular Phase Contrast Microscope with Interchangable Phase Contrast Kit

Phase contrast and brightfield microscopes provide options for observing live cells depending on your applications. A complete set of phase contrast kit can be flexibly equipped with an ordinary biological microscope to be a phase contrast microscope system. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. The compound PLAN Siedentopf trinocular microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four PLAN objectives, large double layer mechanical stage with scales, variable intensity halogen transmitted illumination system and a set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 1600X. The phase contrast kit includes a phase contrast NA1.25 condenser, a centering telescopic eyepiece, three achromatic phase contrast objectives with phase plate: 10X, 40X, 100X. The phase contrast biological microscope offers six levels of magnification power: 100X-160X-400X-640X-1000X-1600X. This phase contrast compound microscopy is suitable for research laboratories and advanced applications in clinical offices.

Features

• M834PLAN-PHD; Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (spring), PH100X (oil, spring); Viewing head: trinocular Siedentopf 30degrees inclined 360 degrees rotatable
• M834PLAN-PHD; Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (spring), PH100X (oil, spring); Viewing head: trinocular Siedentopf 30degrees inclined 360 degrees rotatable
• M834PLAN-PHD; Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (spring), PH100X (oil, spring); Viewing head: trinocular Siedentopf 30degrees inclined 360 degrees rotatable

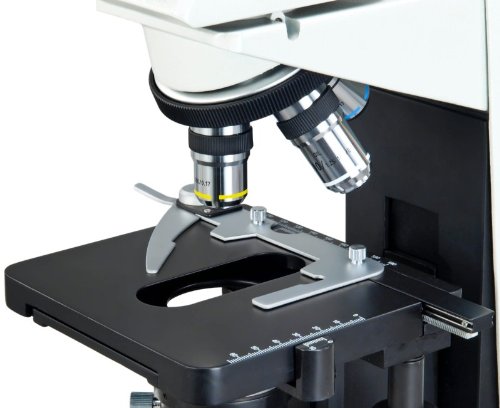

• Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece; A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm)
• A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both sides with tension control; Stage upward stopper to protect objectives and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment
• hase contrast condenser: NA1.25 (37mm mounting size) condenser, one centering telescopic eyepiece with three separated condenser annular plates for 10X, 40X, and 100X, each can be centered individually; All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
• 5-year warranty against manufacturing defects
