OMAX 40X-2000X Compound Binocular Biological Microscope with Kohler Illumination

The 40X-2000X compound binocular microscope includes both Kohler illumination system and 6V 20W halogen transmitted illumination system. The Kohler illumination provides even and better light. The compound microscope comes with a sliding binocular head, large double layer mechanical stage and Abbe NA1.25 condenser with iris diaphragm. It’s capable to add USB camera, darkfield condenser or phase contrast condenser, e.g. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is good for teaching, demonstration, clinical examination and research purpose.

Features

• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees;Inclined 360degrees;swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees;Inclined 360degrees;swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees;Inclined 360degrees;swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes

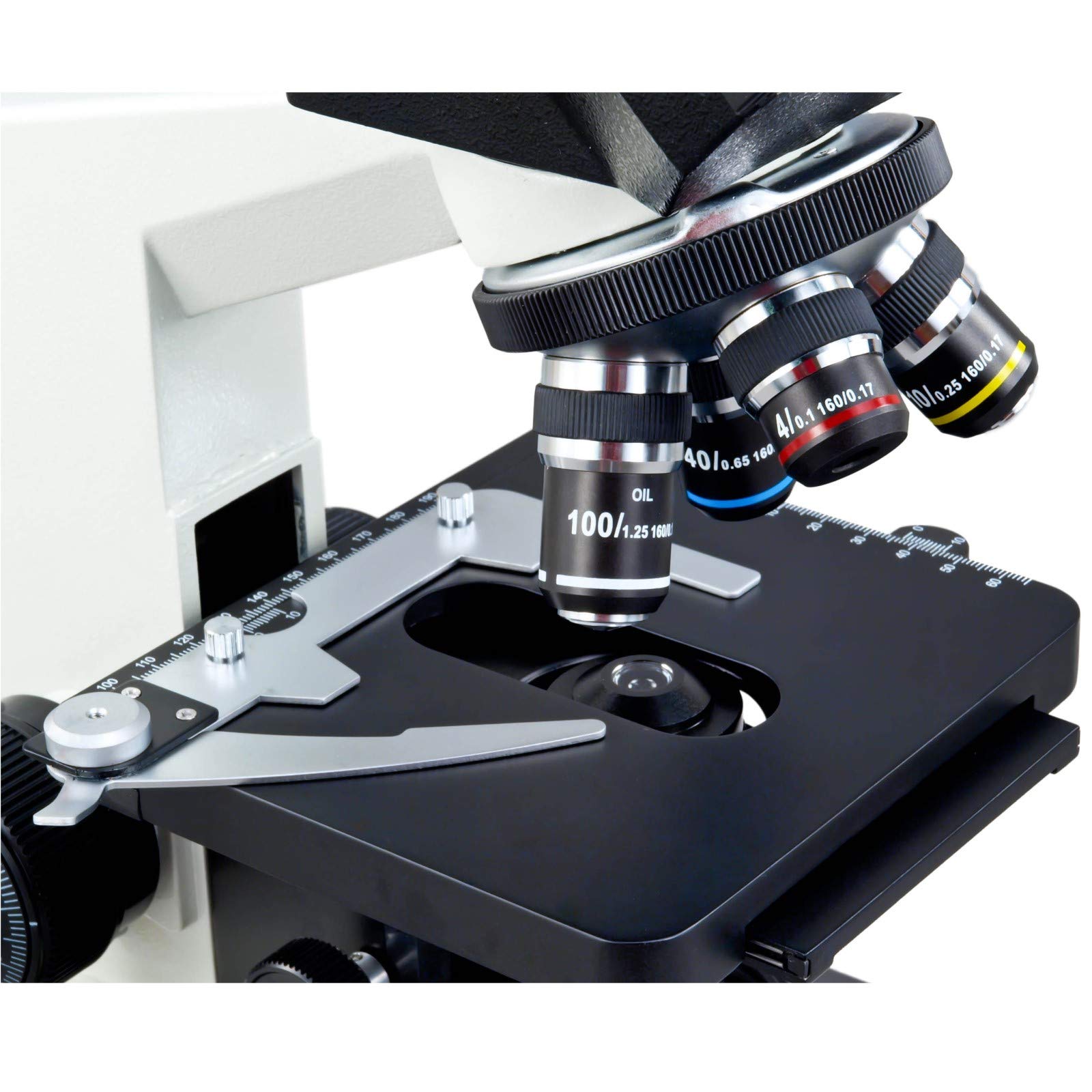

• Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
• Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Kohler illumination: built in iris field diaphragm, center adjustable
• Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
• 5-year warranty against manufacturing defects
