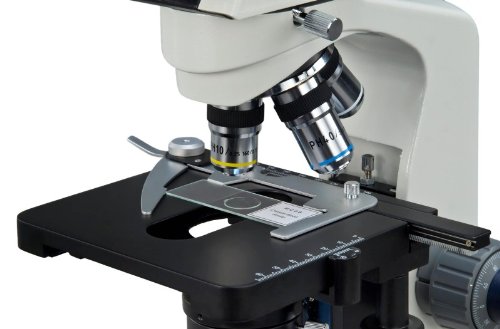

OMAX 40X-2000X Trinocular Phase Contrast Compound Microscope with Interchangable Phase Contrast Kit and Reversed Nosepiece

The trinocular compound siedentopf LED microscope provides phase contrast microscope system and brightfield microscope system. The phase contrast microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.

Features

• Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm – 75mm; Diopter: adjustable on left eyepiece tube
• Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm – 75mm; Diopter: adjustable on left eyepiece tube
• Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm – 75mm; Diopter: adjustable on left eyepiece tube
• Nosepiece: revolving, quadruple, reversed; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
• Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Phase contrast condenser: NA1.25 (37mm mounting size) condenser, one centering telescopic eyepiece with three separated condenser annular plates for 10X, 40X, and 100X, each can be centered individually; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
• Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
• 5-year warranty against manufacturing defects
