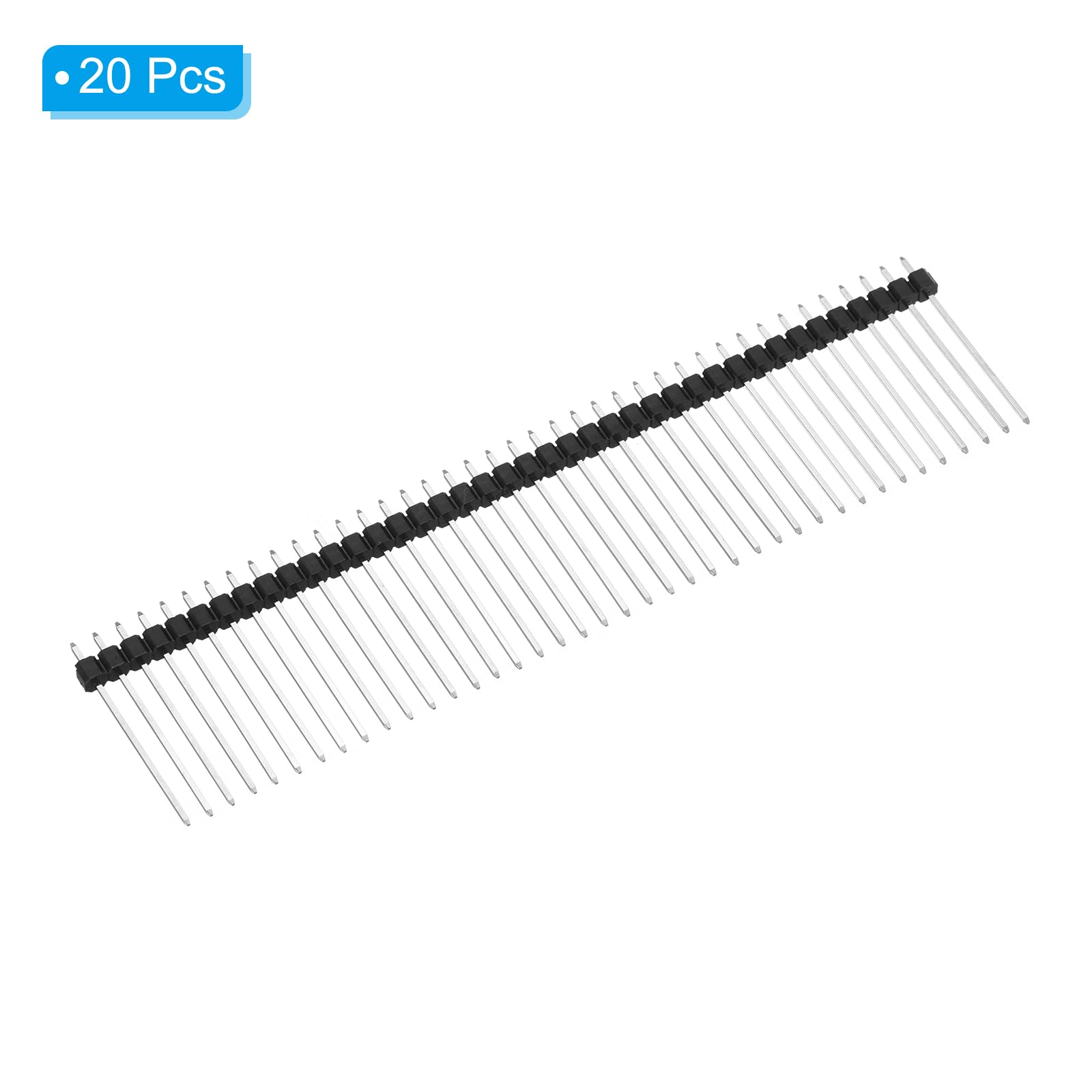

What is this? The pin header is one of the connectors. It is widely used in circuit boards in electronics, electrical appliances, and instruments. What will I get? This single row pin connector, we provide here, is in size of: Total size: 101 x 2.5mm / 3.98 x 0.1-inch (L*W) Pin Length: 25mm / 0.98-inch Pitch: 2.54mm / 0.1-inch Pin Number: 40 Mounting Angle: Straight In the package of: 20 x Pin Header Row Is there any advantages of the product? Made of plastic and metal, the pin header is strong and sturdy enough to provide a long service life. The single row of pins connects blocked or isolated circuits to achieve current or signal transmission. How to use it? Step of installation: 1. Flush cut the pin header into the pin number you need; 2. Solder the single row connector on the circuit board. What should I notice? Please confirm if the pitch size meets your requirement before purchasing.
Features
- The pin header is one of the connectors. It is widely used in circuit boards in electronics, electrical appliances, and instruments.
- Total size: 101 x 2.5mm / 3.98 x 0.1-inch (L*W); Pin Length: 25mm / 0.98-inch; Pitch: 2.54mm / 0.1-inch; Pin Number: 40; Mounting Angle: Straight; In the package of: 20 x Pin Header Row

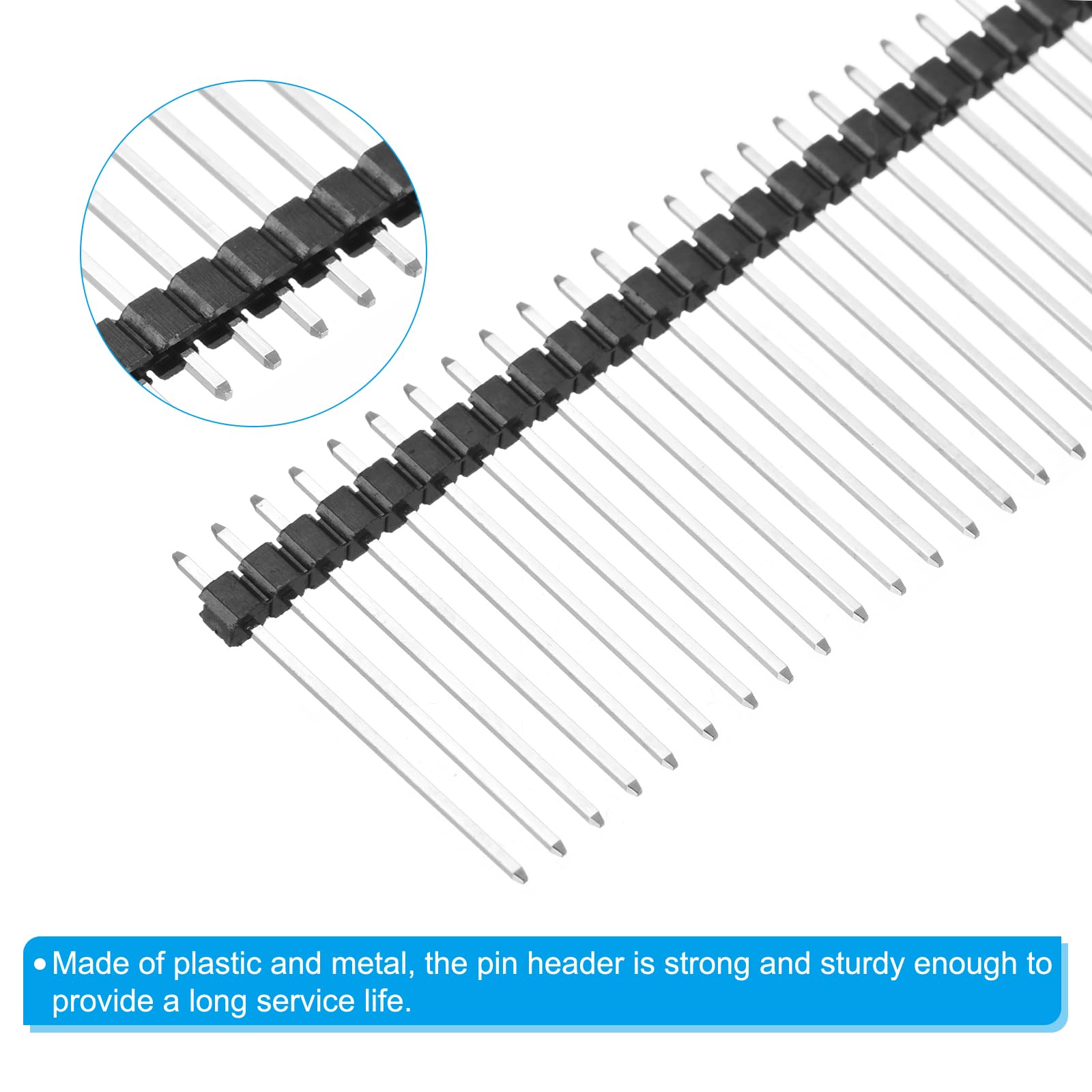

- Made of plastic and metal, the pin header is strong and sturdy enough to provide a long service life. The single row of pins connects blocked or isolated circuits to achieve current or signal transmission.
- Step of installation: 1. Flush cut the pin header into the pin number you need; 2. Solder the single row connector on the circuit board.
- Please confirm if the pitch size meets your requirement before purchasing.
