Ceramic-metal package, 3.3 x 3.3 x 2.75 mm;Power supply voltage: 1.5 to 3.6 V;Temperature range: 20 to + 85 degrees C
Features

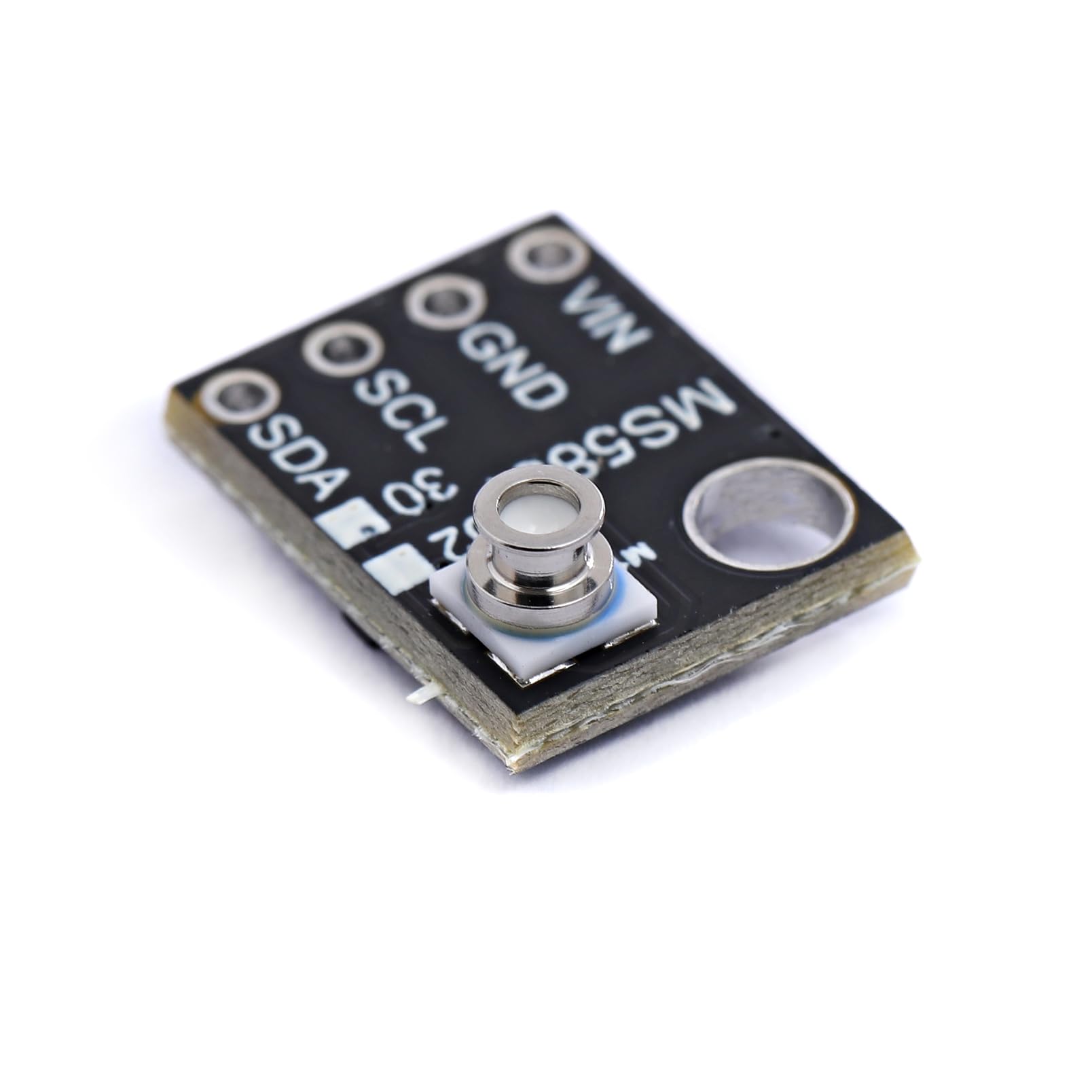

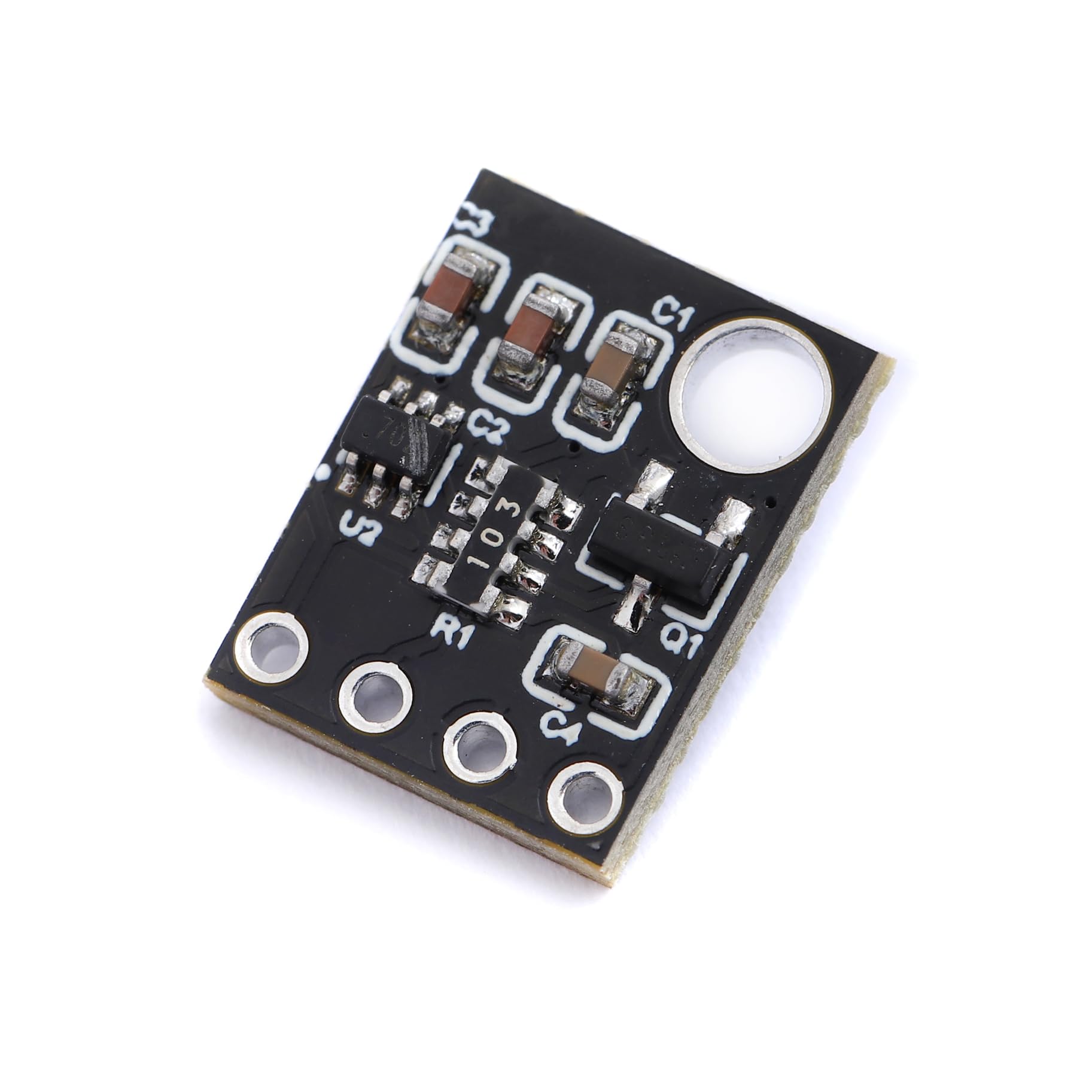

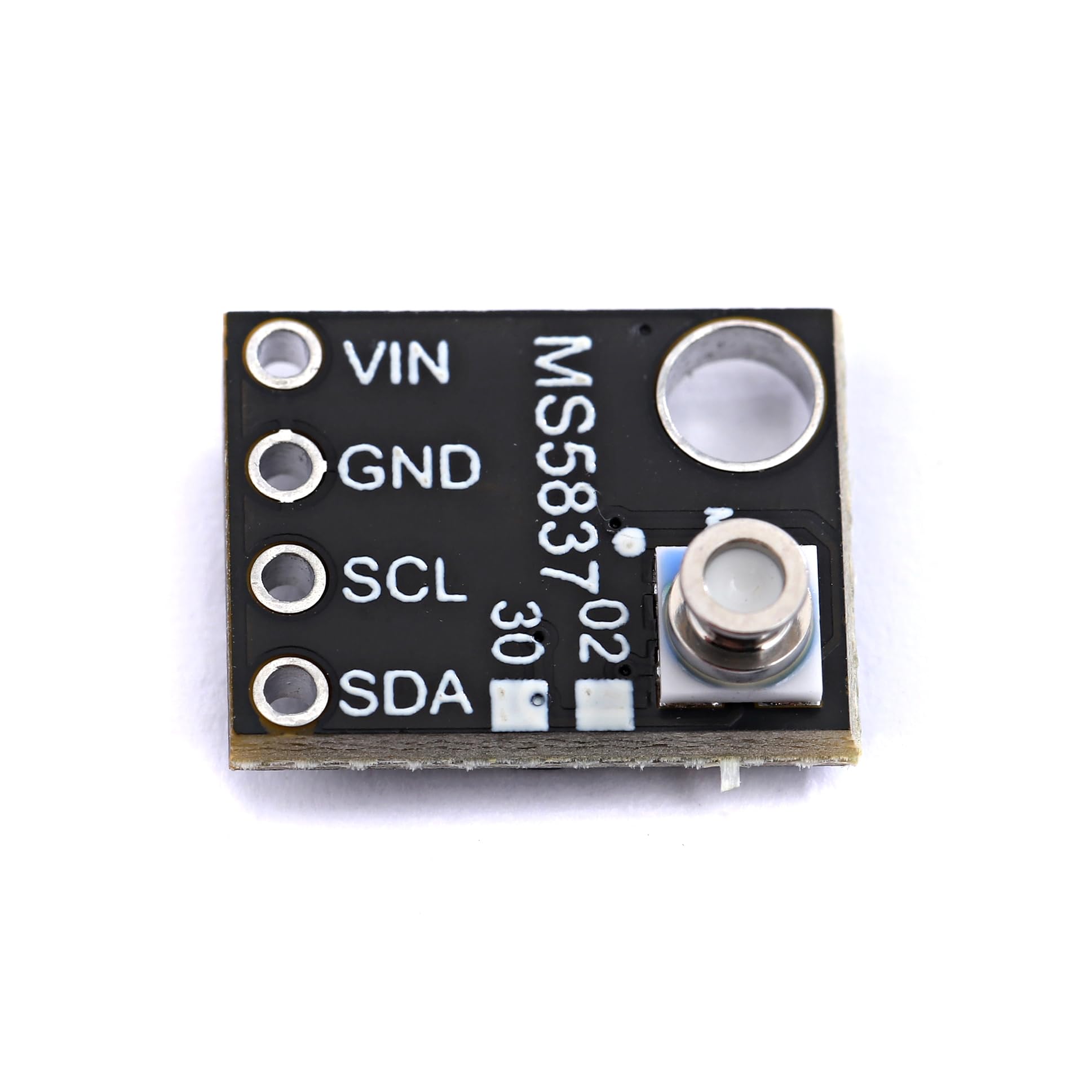

- MS5837 is a new generation of high resolution pressure sensor with I2C bus interface. Its water depth resolution is 2 mm. It is suitable for depth measurement system
- The sensor module consists of a high linear pressure sensor and an ultra-low power 24 bit_ADC with internal factory calibration coefficient. Accurate 24-digit pressure and temperature values and different operating modes are provided. Users can configure conversion speed and current consumption according to their needs. High resolution temperature output enables you to achieve the functions of depth measurement system and thermometer without additional sensors
- MS5837 can connect almost any microcontroller. The communication protocol is simple, and there is no need to program the internal registers in the device. Gel protection and antimagnetic stainless steel cap can ensure that the sensor module is waterproof. This new sensor module is based on advanced MEMS technology and benefits from the mature experience and expertise of MEAS Switzerland in mass manufacturing over the past decade.
