Upgrade kit,Tube Amp,Stable Boost Function Preamplifier DIY Kit, Bile Preamplifier, for DIY Lovers DIY Kit

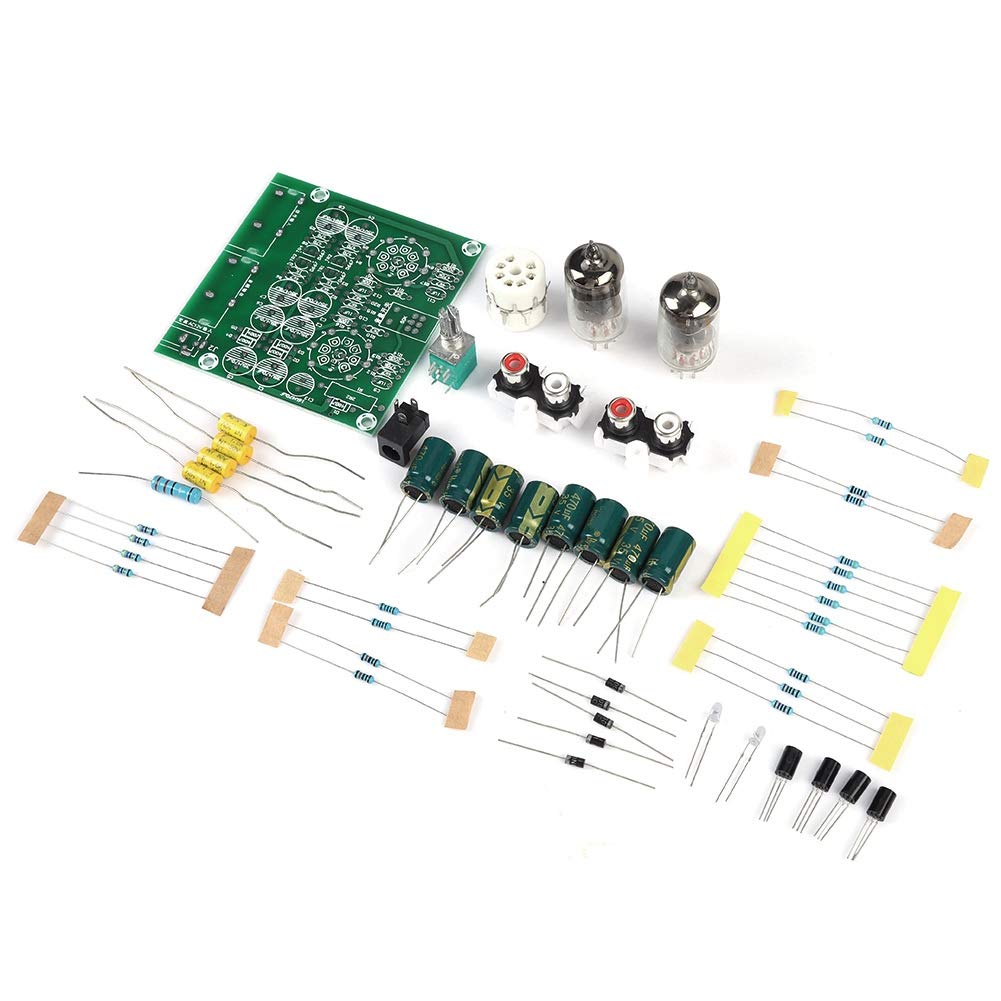

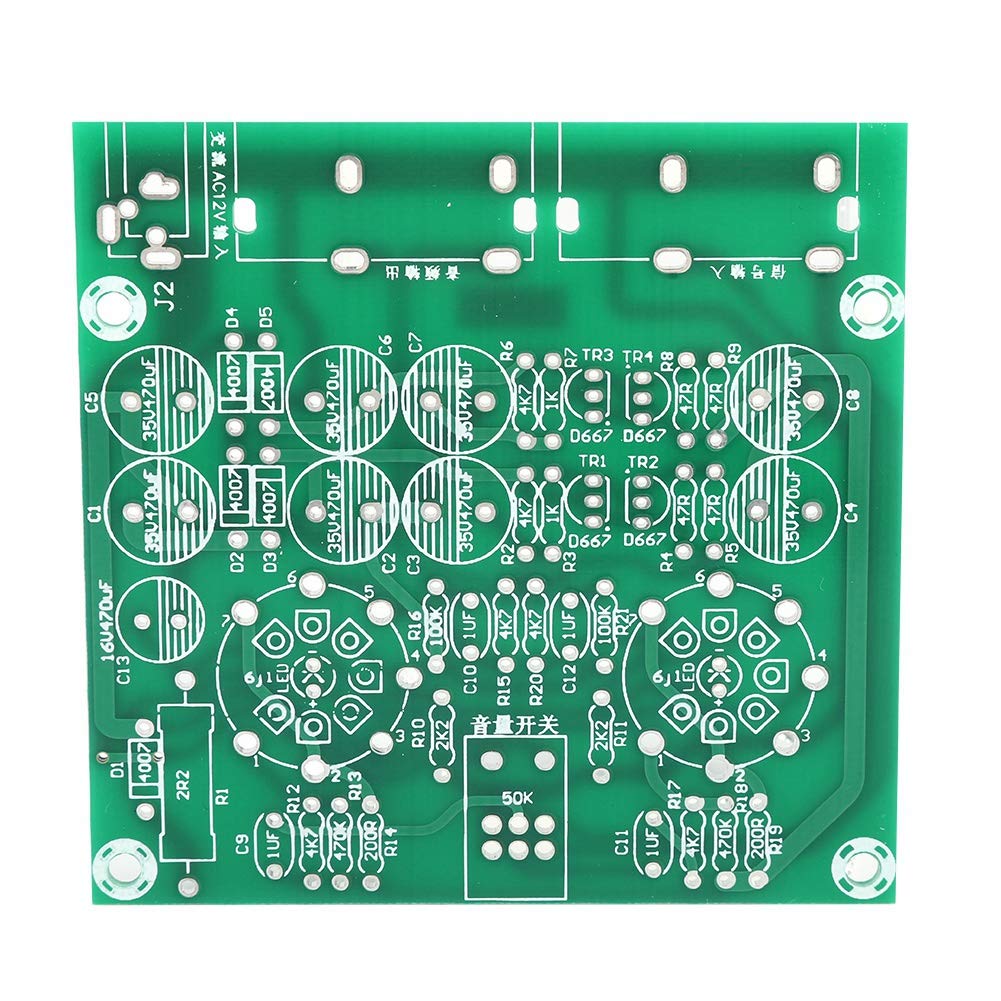

Features: FE-6J1-2 fever tube pre-amp board is the circuit schematic design imitation Music fax X-10D, to be rational optimization, more stable performance than the original machine, tube play 10% increase. Using a single 12V AC input, comes with boost function, low supply voltage to the effect of high-pressure tube. The capacitance filter of 8 470UFs is very clean. Excellent power supply system to ensure that the four 470UF capacitor filter clean, tube filament is connected in series, DC 12V power supply, reducing noise. Using MET series of non-polar capacitor, high-frequency low-resistance electrolytic capacitors, 1% precision metal film resistors, J-class military regulation tube 6J1. Spec: Model: 6jl electronic tube bile preamplifier, can replace the tube type 6AK5, 5654, 6AU6, etc. Power Input : AC 12V 1A 5.5*2.5 PLUG Channel type: 2.0/stereo Knob Function: power switch / volume adjustment Power Input: AC AC12V 0.8A / 5.5*2.5 plug power supply or transformer (DC is not supported) Magnification: 0.85 times magnification Size: Approx. 77 * 75 * 52 mm/ 3 * 3 * 2 in Package Weight: 88 g Package list: 1 * DIY Kit

Features

• Excellent power supply system to ensure that the four 470UF capacitor filter clean, tube filament is connected in series, DC 12V power supply, reducing noise.
• Using MET series of non-polar capacitor, high-frequency low-resistance electrolytic capacitors, 1% precision metal film resistors, J-class military regulation tube 6J1.
• The capacitance filter of 8 470UFs is very clean.
• FE-6J1-2 fever tube pre-amp board is the circuit schematic design imitation Music fax X-10D, to be rational optimization, more stable performance than the original machine, tube play 10% increase.
• Using a single 12V AC input, comes with boost function, low supply voltage to the effect of high-pressure tube.
